VersiStart i II Series (18A~200A)

Features:
  • two-phase controlled soft starter
  • controlled by microcontroller
  • integrated bypass relay
  • current and torque reduction during acceleration
  • integrated motor overload protection
  • motor PTC connection
  • voltage range 200 - 440V or 200 - 575V
  • degree of protection: IP20 (up to 100A), IP00 (from 140A up)
Functions:
  • 2 relay outputs
  • acceleration time monitoring
  • adjustable parameters:
    - rated motor current
    - current ramp
    - current limit
    - soft stop - ramp time
    - motor protection class
    - output relay function
    - phase rotation protection

Typical Applications:
pumps, ventilators
compressors
mills, crushers, presses
conveying systems
drives with high-inertia starting


Accessories:

  • Ext. operating panel and interface (29000.25901)
  • Interface for ext. operating panel (29000.25902)
  • DeviceNet module (29000.25903)
  • Modbus module (29000.25904)
  • Profibus module (29000.25905)
  • Module for pumps applications (29000.25906)
  • Finger protection (29000.25907)

Models:

Technical Data

AC-VS i II 440-



18C1

34C1

42C1

48C1

60C1

75C1

85C1

100C1

140C1

170C1

200C1



18C2

34C2

42C2

48C2

60C2

75C2

85C2

100C2

140C2

170C2

200C2

Mains / Motor voltage according to DIN EN 50160 (IEC 38)

200-440V 45/66Hz



AC-VS i II 575-



18C1

34C1

42C1

48C1

60C1

75C1

85C1

100C1

140C1

170C1

200C1



18C2

34C2

42C2

48C2

60C2

75C2

85C2

100C2

140C2

170C2

200C2

Mains / Motor voltage according to DIN EN 50160 (IEC 38)

200-575V 45/66Hz

Rated device current in A

18A

34A

42A

48A

60A

75A

85A

100A

140A

170A

200A

Motor rating at 400V in kW

7.5

15

18.5

22

30

37

45

55

75

90

110

Current ramp

2s, 5s, 15s with 150%, 200% and 250% in

Current limit

250%, 275%, 300%, 325%, 350%, 375%, 400%, 425%, 450% in

Motor protection class

adjustable

Deceleration time

2s … 20s

Switching frequency 4x Ie and 6s

AC 53b 10/h

AC 53b 6/h

Techn. parameter of relay outputs

6A/30VDC; 2A/400VAC

Ambient temperature

-10ºC … +40ºC (+60ºC Derating)

Control voltage

C1: 110-240VAC -15%/+10% 380-440VAC -15%/+10%; C2: 24VDC/24 VAC ±20%

Weight / kg

2.4

4.3

6.8

Order number:

440V/C1         25900.44...

018

034

042

048

060

075

085

100

140

170

200

440V/C2         25901.44...

018

034

042

048

060

075

085

100

140

170

200

575V/C1*        25900.57...

018

034

042

048

060

075

085

100

140

170

200

575V/C2*        25901.57...

018

034

042

048

060

075

085

100

140

170

200

* units with 575V are not available ex stock, uppon request

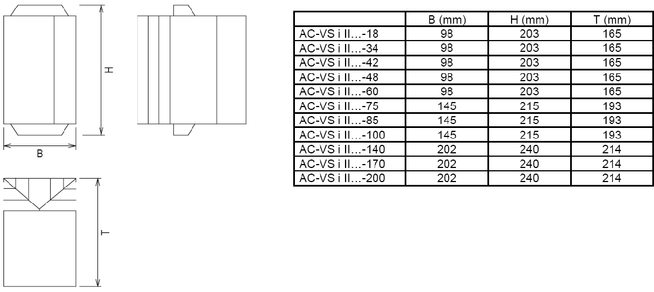

Dimensions:

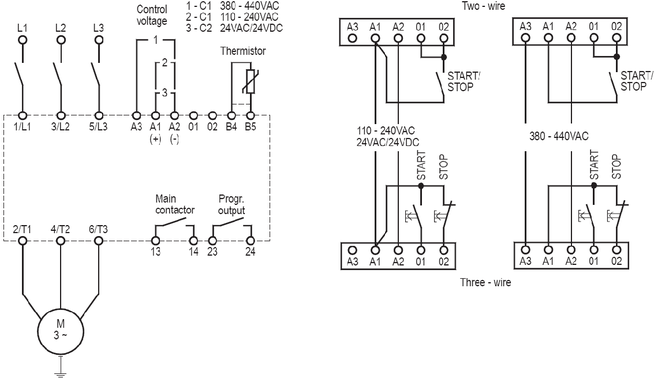

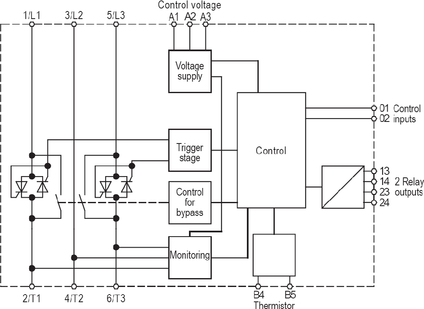

Connection Diagram:
