SAS (6,5A~45A)

img1 Features:
  • single-phase controlled soft starter
  • all devices for pole-changing motors
  • dual-voltage, for 400V and 230V networks
  • terminal arrangement suitable for switchgear connection
  • for snap-mounting on 35mm standard rail
  • integrated bypass relay
  • no mains neutral conductor (N) required
  • special voltages up to 640V
  • also for single-phase applications
  • degree of protection IP 20 (SAS 3 ... SAS 11) degree of protection IP 00 (SAS 11PUST, 22PUST)
Functions:
  • soft start
  • 2 separately adjustable parameters starting torque, starting time
  • control contact for pole-changing motors

Typical Applications:
packaging machinery
sliding doors
belt drives
conveying machinery
door drives of passenger and goods lifts
limitation of starting current for transformers


Upon request:

  • potential-free input control voltage 10 ... 30VDC
  • SAS 3 up to SAS 11: standard up to 480V special voltages 500V up to 640V (all types in 100mm-housing)
  • SAS 11PUST and SAS 22PUST: special voltages up to 690V

Models:

Technical Data

AC-SAS

3

5,5

7,5

11

11PUST

22PUST

Mains / Motor voltage X1-X2 jumpered according to DIN EN 50160 (IEC 38)

160 ... 240V ± 10%

400V ± 15%

Mains / Motor voltage X1-X2 not jumpered according to DIN EN 50160 (IEC 38)

380 ... 480V ± 10%

Device nominal current

6,5A

12A

16A

25A

25A

45A

Mains frequency

50/60Hz

Motor rating at 230V

1,5kW

3kW

4kW

5,5kW







Motor rating at 400V

3kW

5.5kW

7.5kW

11kW

11kW

22kW

min. motor current

10% of the device rated current

Starting torque

0 … 50%

Starting time

0.5 … 5s

Reset time

200ms

max. switching cycle at 3x Ie and 5s tan

240/h

200/h

120/h

70/h

240/h

120/h

max. Cross-sectional area

2.5mm2

16mm2

I2t-Value Power seniconductor

265A2s

610A2s

800A2s

1250A2s

5000A2s

10500A2s

Ambient / Storage temperature

0ºC … 450ºC / -25ºC … 75ºC

Weight / kg

0.3

0.3

0.5

0.5

2.7

3.0

Order number

20700.40003

20700.40005

20700.40007

20700.40011

20800.38011

20800.38022

Please observe supplementary sheet with dimensioning rules

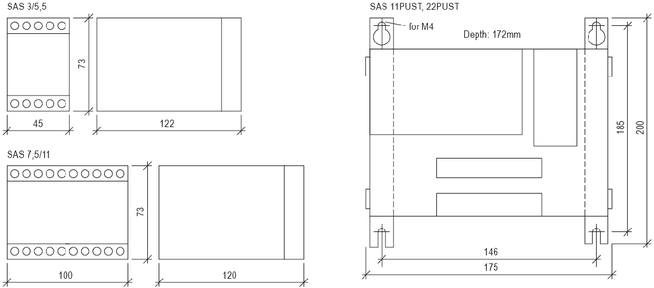

Dimensions:

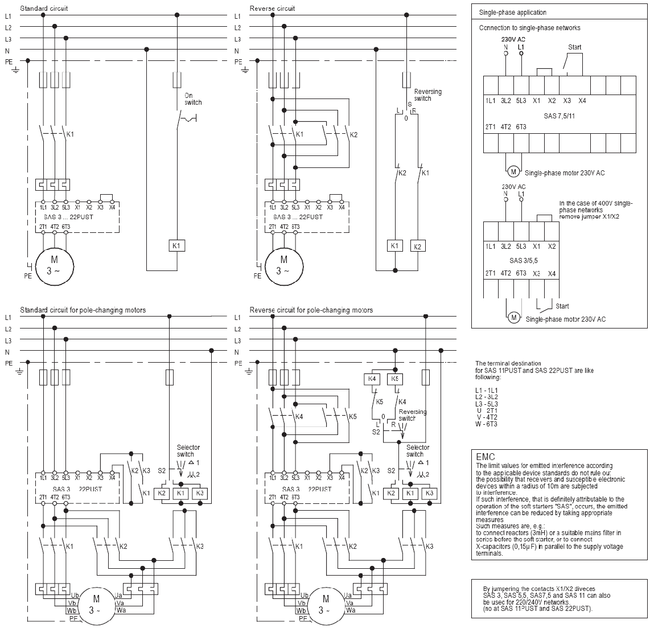

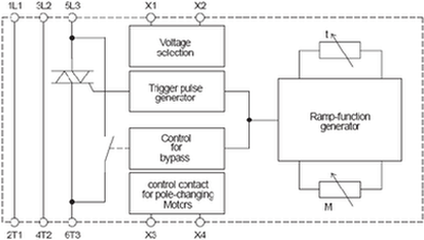

Connection Diagram:
