DC Brake VersiBrake LT Series(6-30A)

Features:
  • DC braking with one-way rectification
  • suitable for all asynchronous motors and for mono phase motors
  • controlled by microcontroller
  • easy mounting, also for retrofitting into existing plants
  • wear-resistant and maintenance-free
  • integrated braking contactor
  • for snap-on mounting onto 35mm DIN rail
  • degree of protection IP 20
  • successor for braking devices type BR and BR-L
Functions:
  • direct online start via motor contactor
  • overload protection
  • braking current control
  • automatic remanence time optimization
  • braking current infinitely adjustable 10-100%
  • braking interrupt is possible
  • restart 1,2s after braking interrupt
  • braking time adjustable
  • potential-free output for motor contactor; interlocking during braking; also usable to energize the star contactor during braking

Typical Applications:
sawing machines
centrifuges
wood working machines
textile machines
conveying systems

Models:

Type designation

AC-VB 230-6LT

AC-VB 230-25LT

AC-VB 230-30LT

AC-VB 400-6LT

AC-VB 400-25LT

AC-VB 400-30LT

Mains voltage according to DIN EN 50160 (IEC 38)

220/240V ± 10% 50/60Hz

380/415V ± 10% 50/60Hz

Power draw of the electronics

3VA

Recommended for rated motor currents up to

0.3 … 3A

2 … 12.5A

2 … 15A

0.3 … 3A

2 … 12.5A

2 … 15A

Rated device current upto a braking time of 20s

6A

25A

30A

6A

25A

30A

Rated device current at a braking time of 30s

6A

17A

20A

6A

17A

20A

max. Braking frequency at a braking time of 5s

1/8s

1/60s

1/90s

1/8s

1/60s

1/90s

I2t-Value Power semiconductor (A2s)

310

1250

1350

310

1250

1350

Braking voltage

0 … 110VDC

0 … 220VDC

max. Braking time

0 … 30s (special device 0 … 60s available)

Contact rating (control relay)

3A/250VAC; 3A/30VDC

Delay time for reduction of residual e.m.f.

Self-optimizing in the range between 0.2 … 1.8s

max. Cross-sectional area for connection

2x 2.5mm2 per terminal

Ambient / Storage temperature

0ºC … 45ºC / -25ºC … 75ºC

Weight / kg

0.6

Order number

2B200.

23006

2B200.

23025

2B200.

23030

2B200.

40006

2B200.

40025

2B200.

40030

Please observe supplementary sheet with dimensioning rules

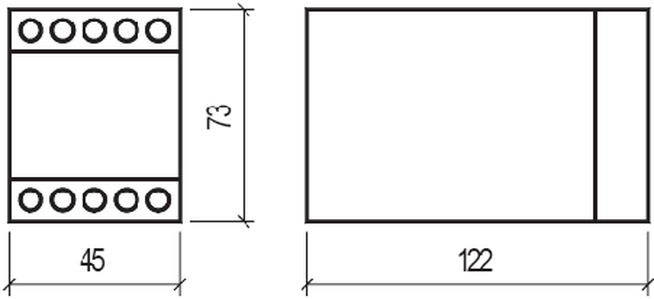

Dimensions:

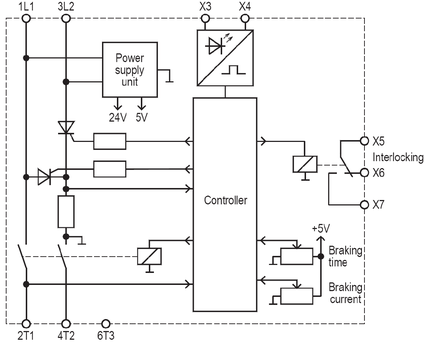

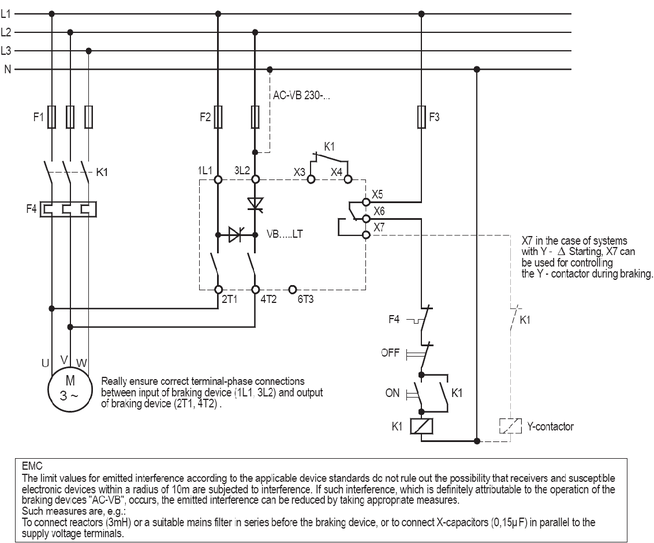

Connection Diagram:
