VersiStart II Series (50A~75A)

Features:
  • two-phase controlled soft starter
  • controlled by microcontroller
  • optimized soft start
  • heatsink temperature detection
  • connection in the motor delta winding (cost saving via smaller rating)
  • current and torque reduction during acceleration
  • easy mounting, also for retrofitting into existing plants
  • integrated bypass relay
  • parameterization by means of four potentiometers
  • no additional control voltage required
  • no mains neutral conductor (N) required
  • economically priced substitute for star-delta starters
  • control outputs with spring-loaded terminals
  • compact design, 103 mm width
  • degree of protection IP20
Functions:
  • soft acceleration and deceleration
  • potential-free control input for soft acceleration and deceleration
  • 4 separately adjustable parameters accel. time, start voltage, decel. time, max. start current
  • boost-start selectable
  • Motor PTC
  • current controlled start-up with external transformer (transformer is included in delivery)
  • potential-free control output for operating state unit bypassed and failure

Typical Applications:
door and gate drives
packaging machines
pumps, ventilators, fans
transport systems, assembly lines
conveying systems
machine applications


Accessories:

  • special voltages 230V and 480V
  • wide voltage range 200-400V or 400-600V with external control supply voltage US 24VDC (option B)

Models:

Technical Data (standard)

AC-VS II 400-50

AC-VS II 400-65

AC-VS II 400-75

Mains / Motor voltage according to DIN EN 50160 (IEC 38)

400V ± 10% 50/60Hz

Rated device current

50A

60A

75A

Motor rating at 400V mains voltage

25kW

30kW

37kW

max. Power dissipation

- in operation

- in standby

30W

10W

min. motor current

20% of the device rated current

Acceleration time

0.5 … 10s

Start voltage

40 … 80%

Deceleration time

0.5 … 10s

max. Start current

200% - 500% of the device rated current

Restart time

200ms

max. switching frequency at 3x Ie and 10s tan

35/h

25/h

30/h

I2t - Power semiconductor

6600A2s

11200A2s

25300A2s

Cross-sectional area

Control terminals

Power terminals

0.2 – 2.5mm2/24 – 12 AWG

solid 1 – 35mm2, 18 – 2 AWG / stranded 1 – 25mm2, 18 – 3 AWG

Tightening torque (power terminals)

25mm2 = 2.5 Nm

25mm2 = 22 ibs in

35mm2 = 4.5 Nm

35mm2 = 40 ibs in

Input resistance Control inputs

10 kΩ

Switching rating of relay output RA1/RA2/RA3

3A/250VAC; 3A/30VDC

Overvoltage category / Pollution degree

III (TT/TN systems) / 2

Installation class

3

Surge strength

4kV

Ambient / Storage temperature

0ºC … 45ºC up to an altitude of 1000m / -25ºC … 70ºC

Weight / kg

1.5

1.5

2.2

Special voltages (optional)

230V / 480V / wide voltage range 200-400V or 400-600V with external control supply voltage Us 24VDC±10%/150mA

Order number

25700.40050

25700.40065

25700.40075
Please observe supplementary sheet with dimensioning rules

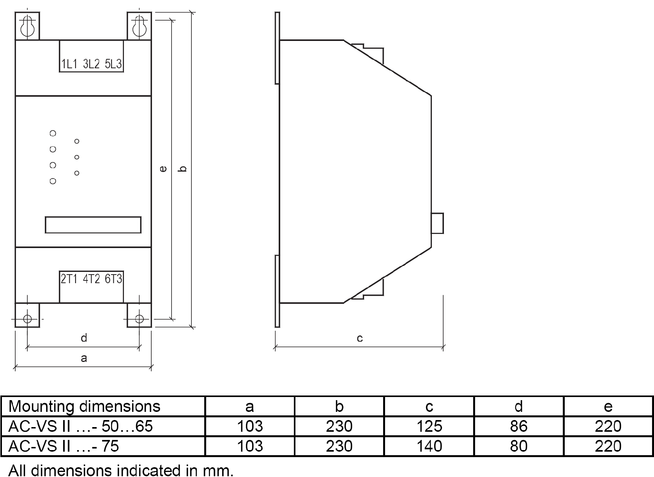

Dimensions:

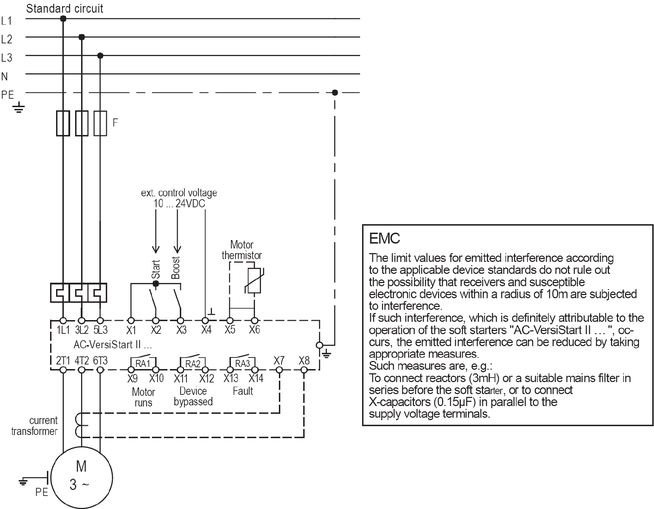

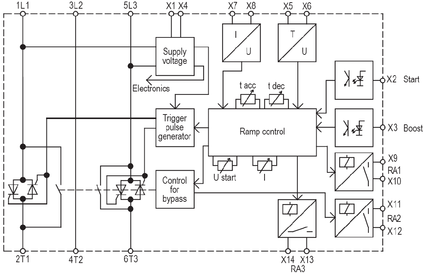

Connection Diagram:
