VersiStart i III Series (23A~220A)

Features:
  • three-phase controlled digital-soft starter (7,5-800kW)
  • integrated Bypass up to 110kW (up to 500kW by mid year ´10)
  • current and torque reduction during acceleration
  • Comprehensive and customizable motor protection
  • DC Braking - Contactorless
  • Display graphical LCD - Real time graphs of motor operating performance
  • Inside Delta (6-wire) connection
  • degree of protection: IP20 (up to 100A), IP00 (from 140A up)
  • motor PTC connection
Functions:
  • Emergency run
  • Forward or reverse jog direction.
  • Remote control inputs (3x fixed, 1x programmable)
  • Relay outputs (3x programmable)
  • 24VDC output
  • Analog output
  • divers Soft Start/Stop control types
  • units with 690V upon request

Typical Applications:
compressors
mills, crushers, presses,
conveying systems
drives with high-inertia starting
machines with gear units, belt or chain
drives


Accessories:

  • Control Software
  • DeviceNet module (29000.25903)
  • Modbus module (29000.25904)
  • Profibus module (29000.25905)
  • USB module (available from end of year 2010)
  • Finger protection (from 145A up, 29000.25909)

Models:

Technical Data

AC-VS i III 525-



23C1

43C1

53C1

76C1

105C1

145C1

170C1

220C1



23C2

43C2

53C2

76C2

105C2

145C2

170C2

220C2

Mains voltage according to DIN EN 50160 (IEC 38)

200-525V 45-66Hz



AC-VS i III 690-



23C1

43C1

53C1

76C1

105C1

145C1

170C1

220C1



23C2

43C2

53C2

76C2

105C2

145C2

170C2

220C2

Mains voltage according to DIN EN 50160 (IEC 38)

380-690V 45-66Hz

Rated device current in A

23A

43A

53A

76A

105A

145A

170A

220A

Motor rating at 400V in kW

-7.5

-15

-22

-30

-55

-60

-75

-110

I2t – Value Power semiconductor in lA2s

1.15

8

15

15

125

125

320

320

Acceleration

Constant current, Current ramp, “Adaptive acceleration control”, Torque control

Deceleration

Timed voltage ramp soft Stopp, Brake

Switching frequency 3x Ie and 10s

AC53b 3.0 – 10:350 10/h

AC53b 3.0 – 10:590 10/h

Techn. parameter of relay outputs

10A/250VAC resistive; 5A/250VAC AC15

Ambient temperature

-10ºC … +40ºC (+60ºC Derating)

Control voltage

C1: 110VAC; 220VAC -15%/+10% C2: 24VDC/24 VAC ±20%

Weight / kg

3.2

3.5

4.8

16

Order number:

525V/C1 2S000.50...*

023

043

053

076

105

145

170

220

525V/C2 2S000.50...*

023

043

053

076

105

145

170

220

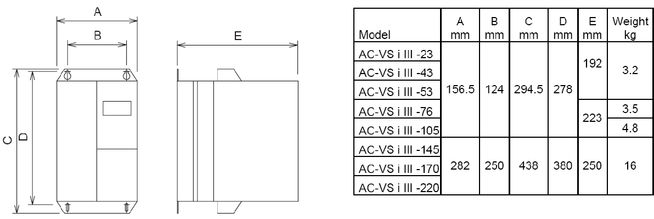

Dimensions:

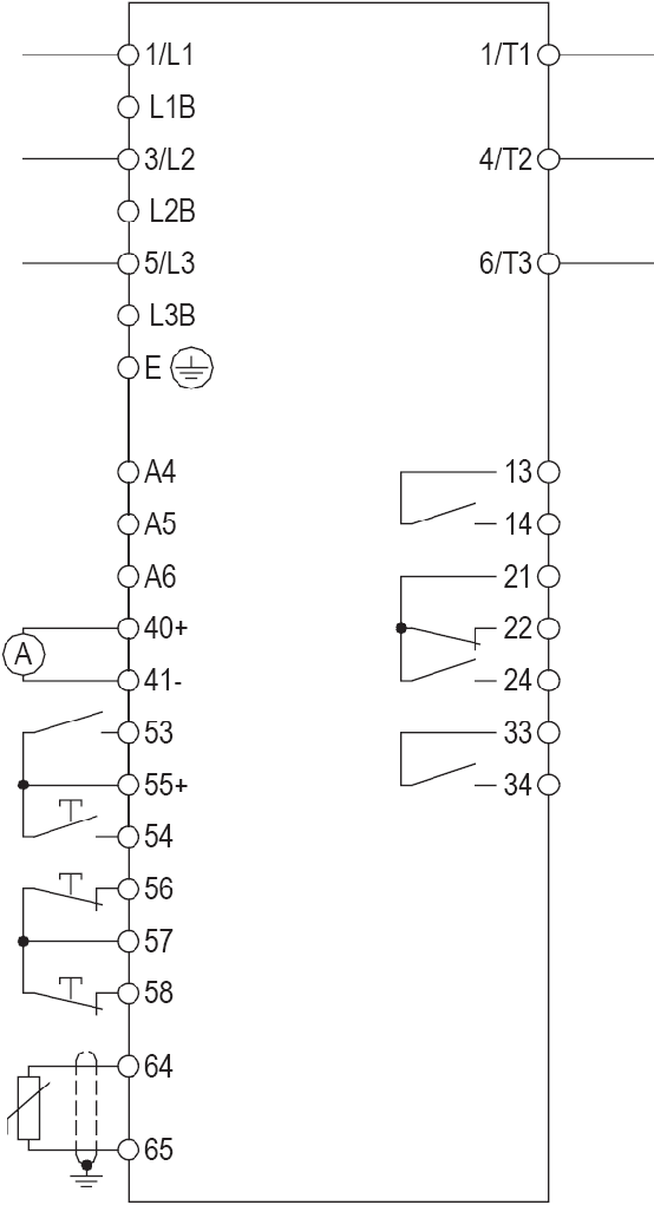

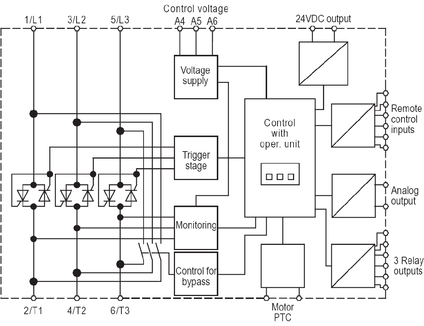

Connection Diagram:
