M430 series inverters for multi-purpose applications
Frequency inverters with sensorless vector control and various powerful functions. Designed for general purpose, pump/fan applications and HVAC systems.

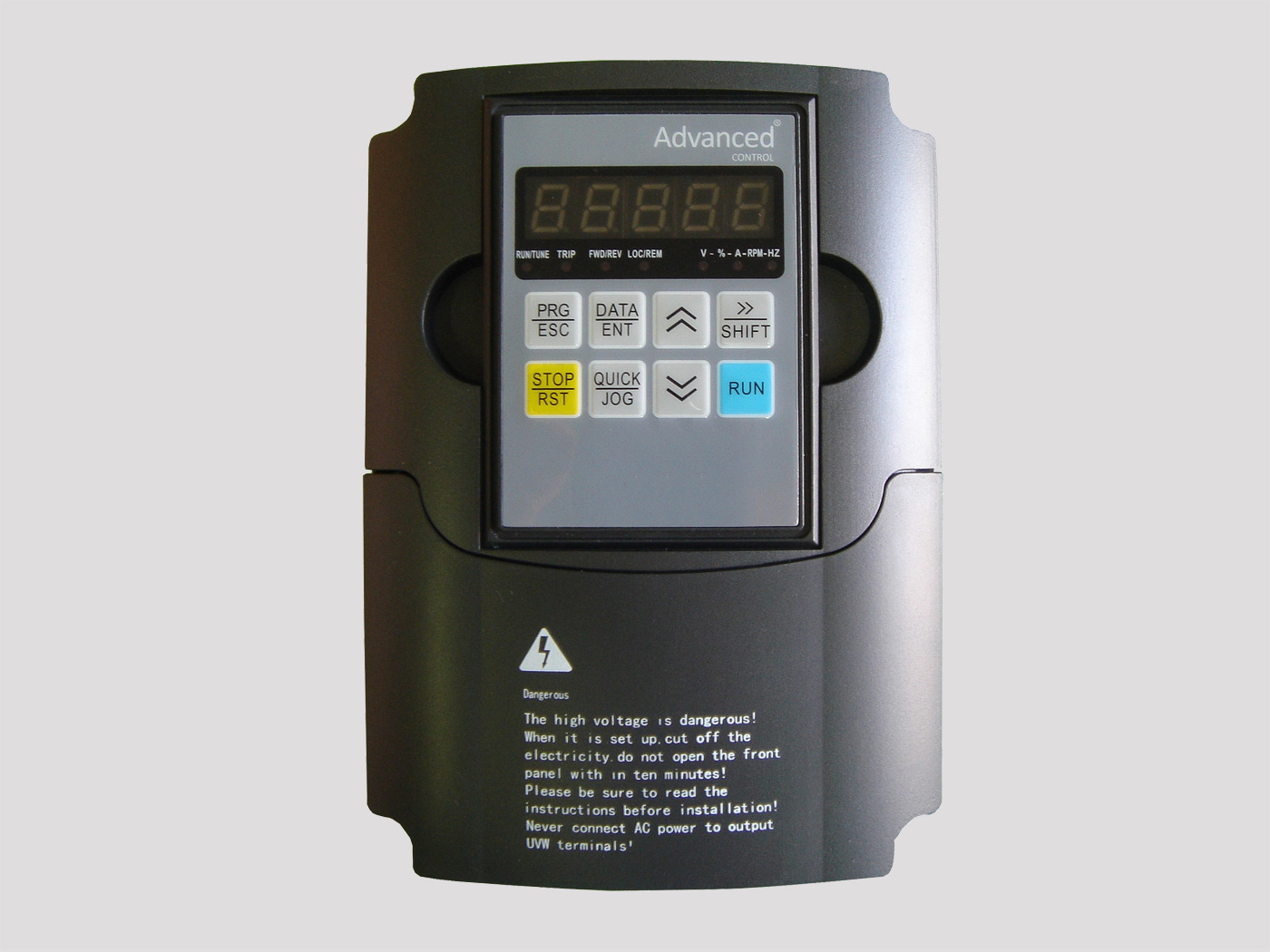

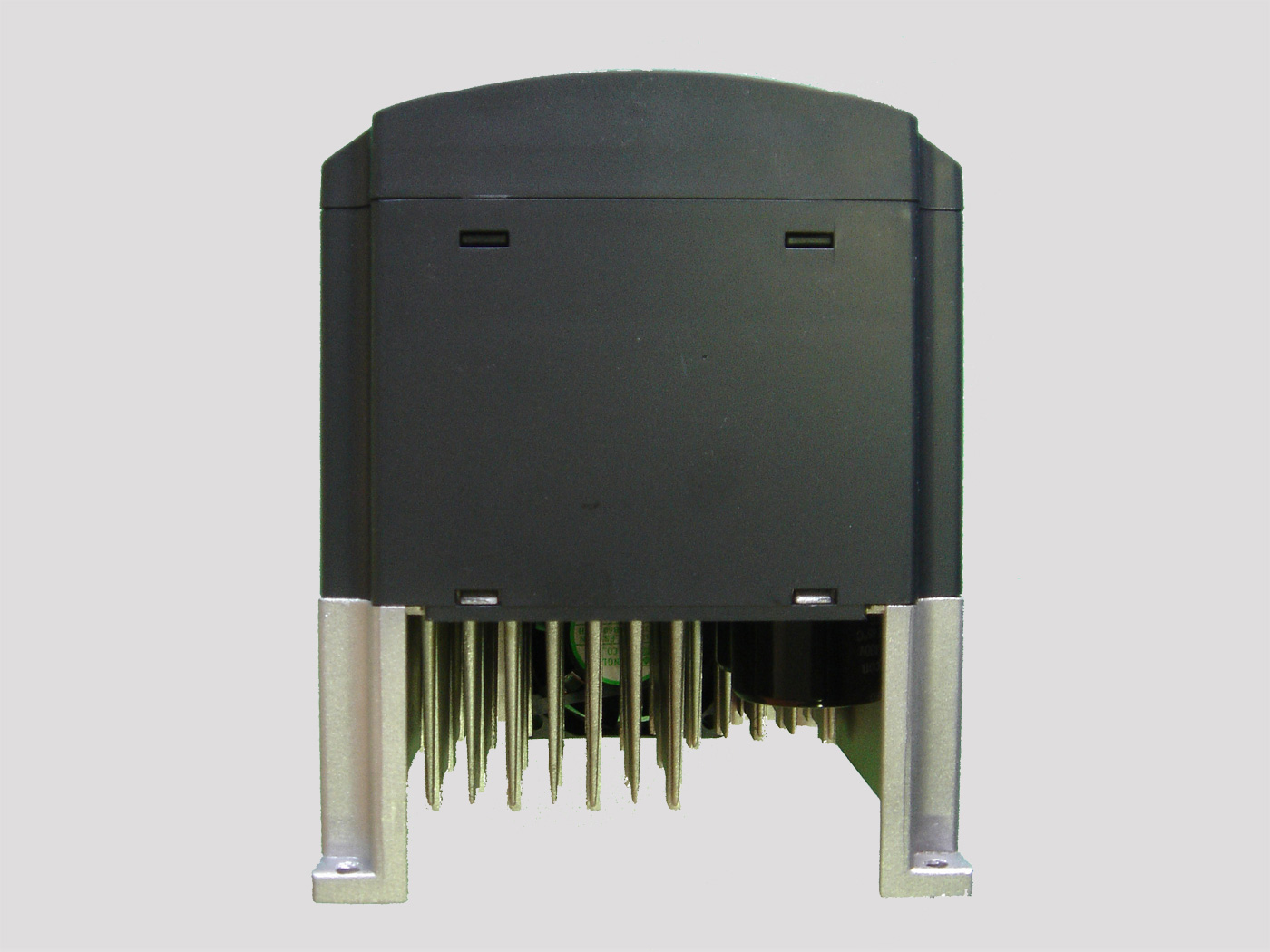

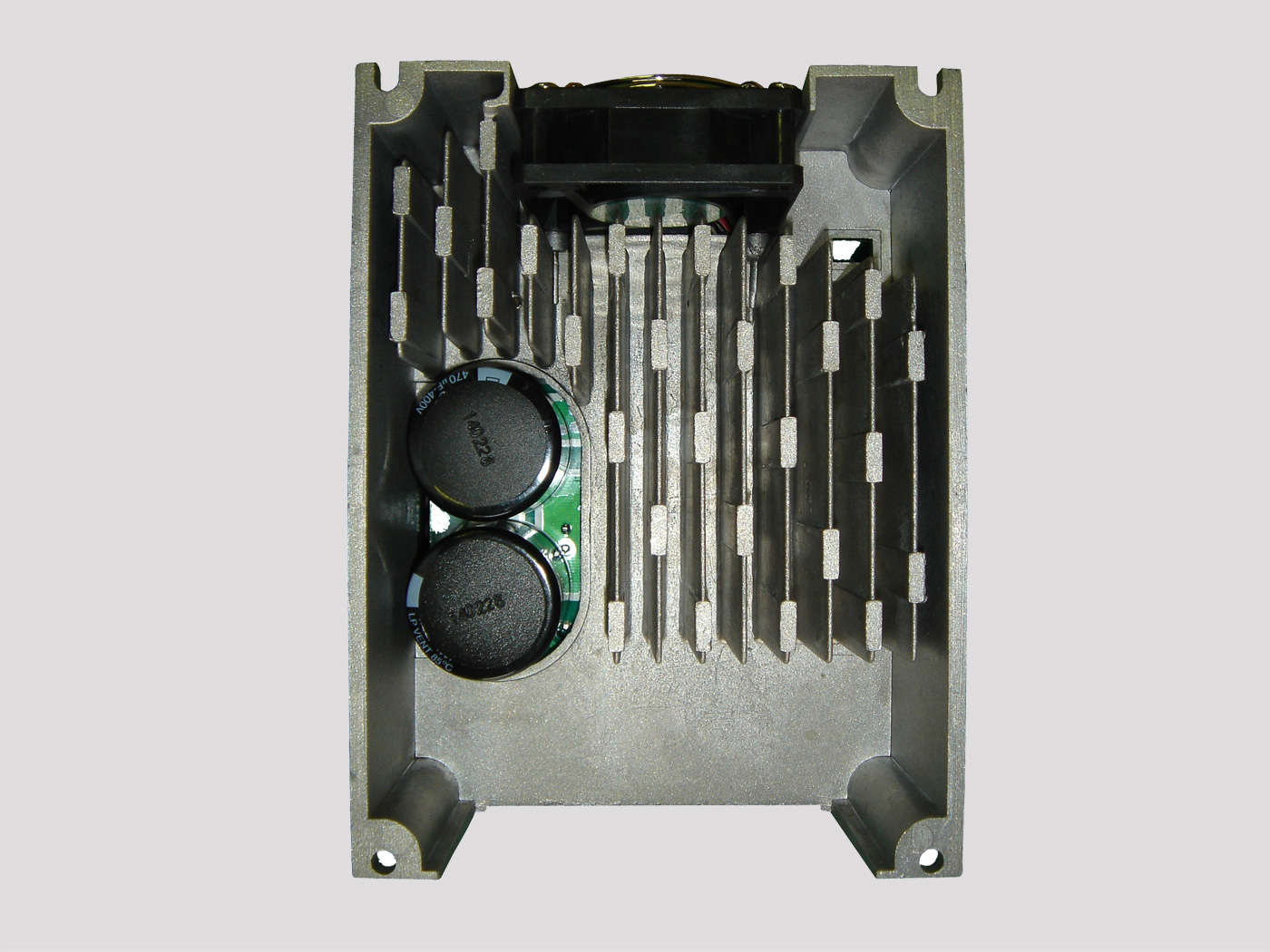

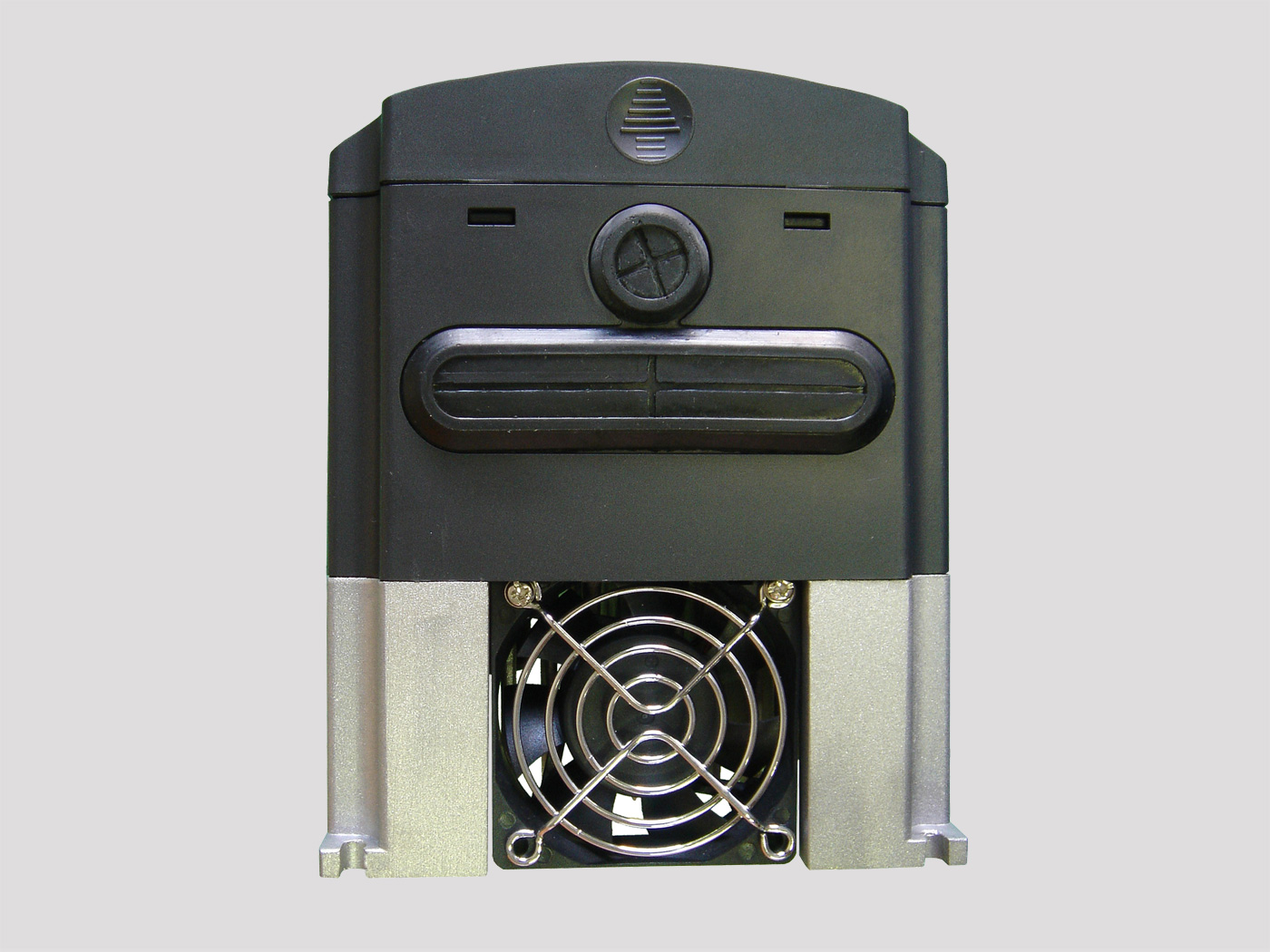

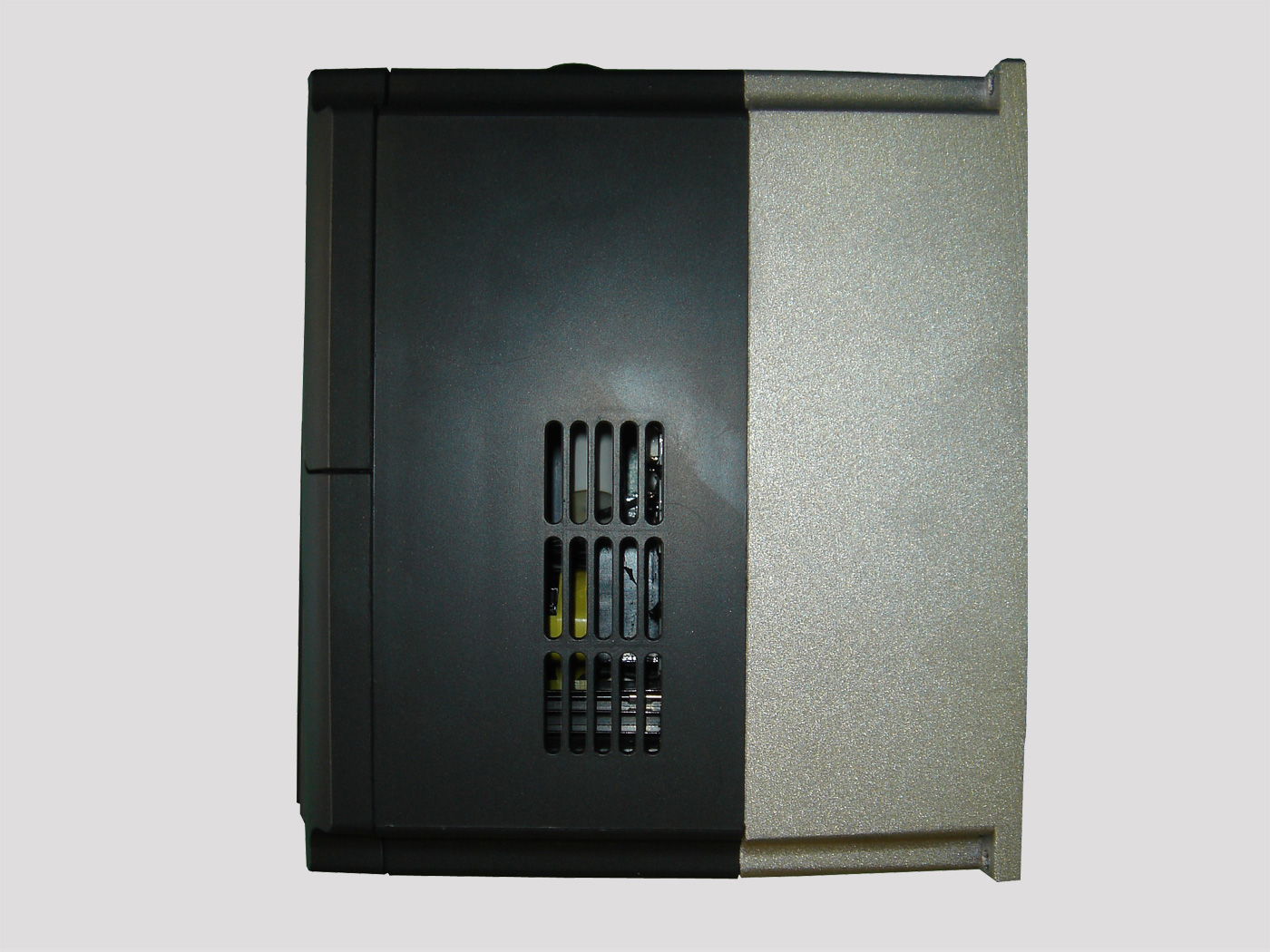

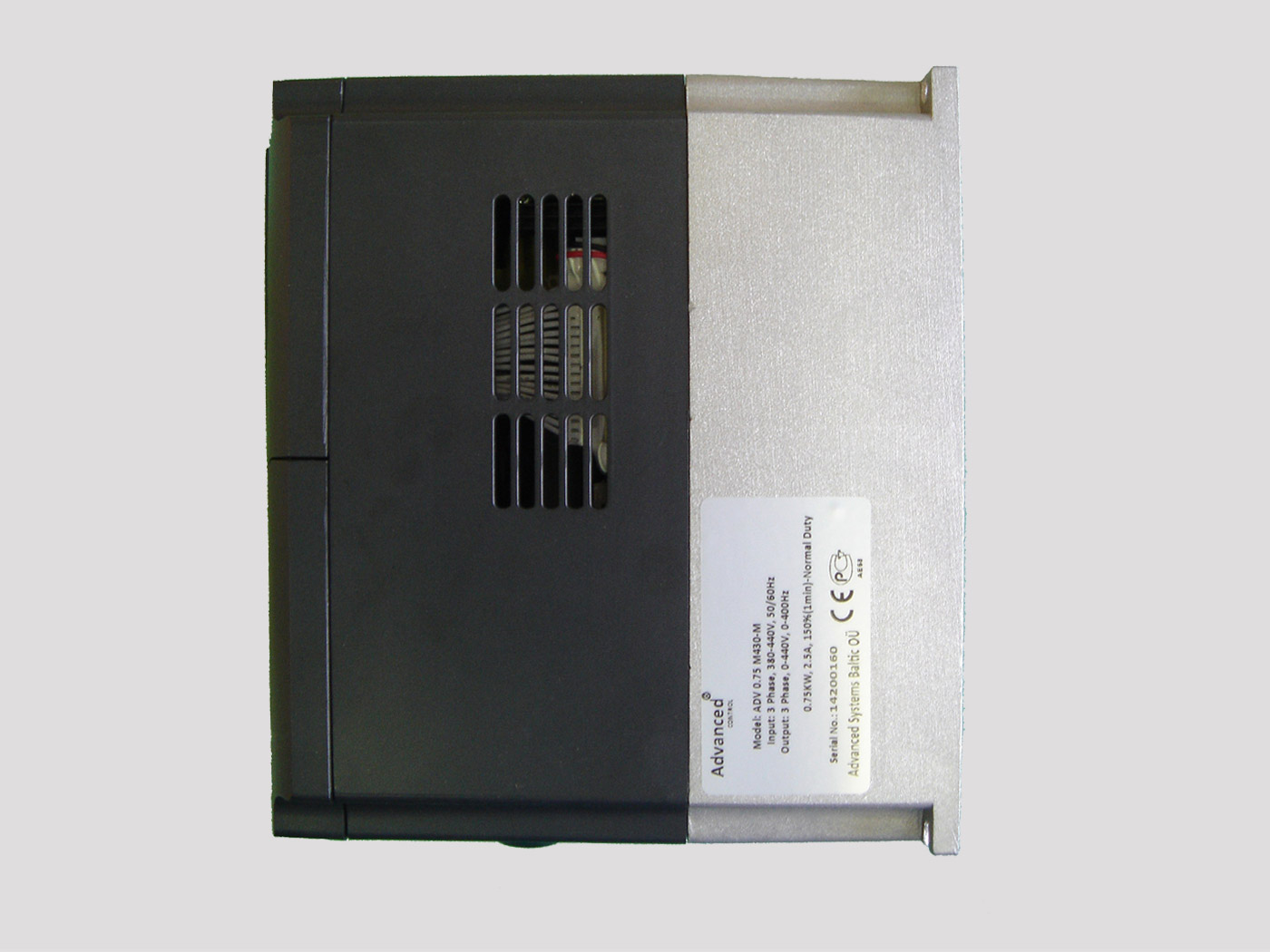

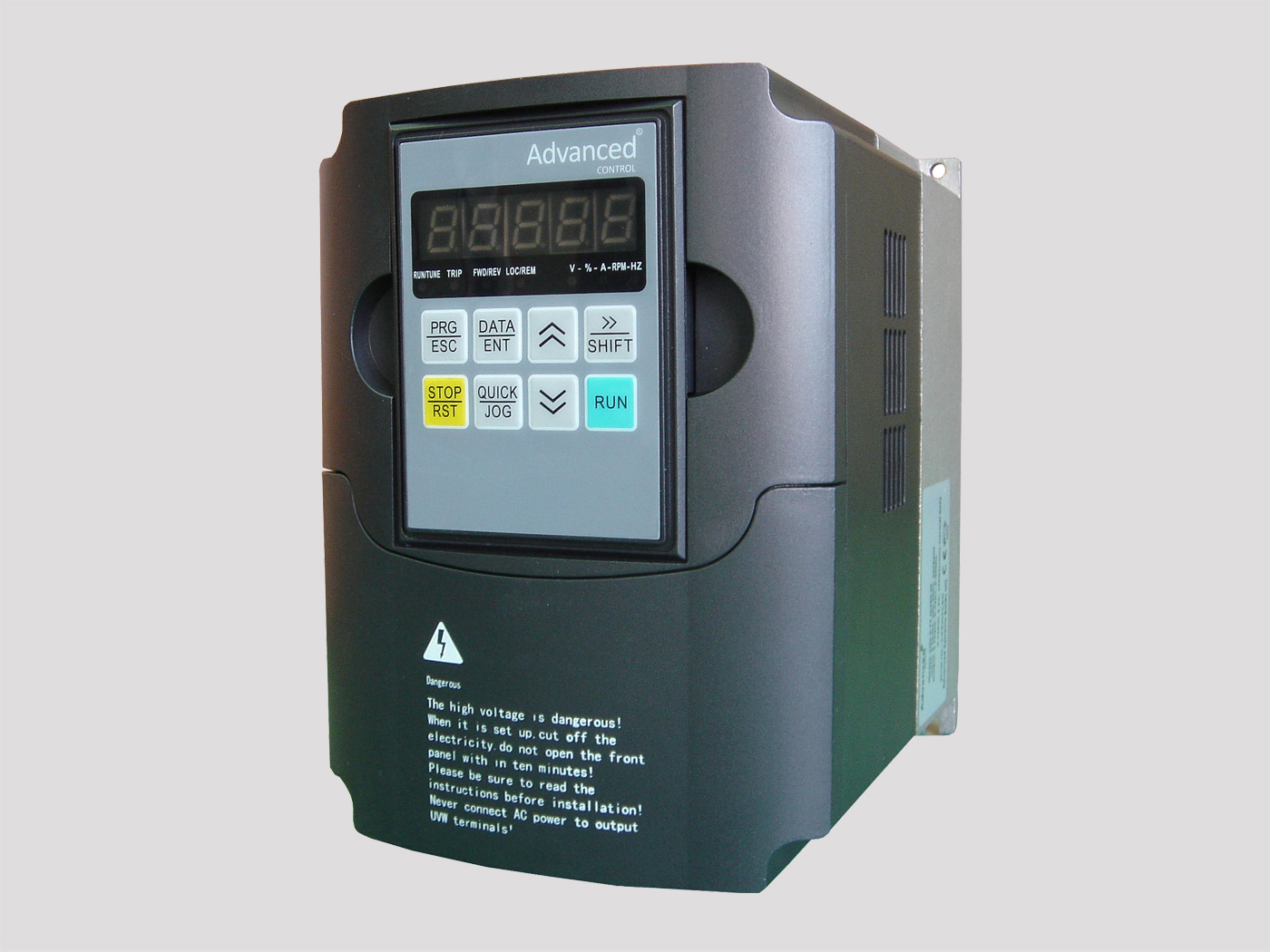

M430 frequency inverters
Capacity range: 0,75~75 kW
Voltage range: 323~437 V
Built-in braking resistor up to 18,5 kW (included)
Build-in PID control
Standard RS485 communication function (ModBus)
Protective structure IP20
Eight digital input terminals
Protective functions: overheat, over current, phase loss protection
Operation Place: indoor,hide sunshine,no dust, corrosive gas, combustible gas, oil mist, water vapor, salinity
M430 series
Model
Capacity range, kW Rated current, А Overload, % 60 sec Dimensions
Deceleration time, seс ADV 0.75 M430-M 0,75
2,5 150% 125x170x149 0,1-3600 ADV 1.50 M430-M 1,5
3,7
150% 125x170x149 0,1-3600 ADV 2.20 M430-M 2,2
5
150% 125x170x149 0,1-3600 ADV 5.50 M430-M 5,5/4
13/9 150%;
163x253x175 0,1-3600 ADV 7.50 M430-M 7,5/5,5
17/13
150%;
163x253x175 0,1-3600 ADV 11.0 M430-M 11/7,5
25/17
150%;
163x253x175 0,1-3600 ADV 15.0 M430-M 15/11
32/25
150%;
218x302x216 0,1-3600 ADV 18.5 M430-M 18,5/15
37/32
150%;
218x302x216 0,1-3600 ADV 22.0 M430-M 22/18,5
45/37
150%;
290x506x236 0,1-3600 ADV 30.0 M430-M 30/22
60/45
150%;
290x506x236 0,1-3600 ADV 37.0 M430-M 37/30
75/60
150%;
290x506x236 0,1-3600 ADV 45.0 M430-M 45/37
90/75
150%;
375x582x255 0,1-3600 ADV 55.0 M430-M 55/45
110/90
150%;
375x582x255 0,1-3600 ADV 75.0 M430-M 75/55
150/110
150%;
375x582x255 0,1-3600
