VersiStart II Series (17A~45A)

Features:
  • two-phase controlled soft starter
  • controlled by microcontroller
  • optimized soft start
  • connection in the motor delta winding (cost saving via smaller rating)
  • current and torque reduction during acceleration
  • easy mounting, for snap-mounting on 35mm standard rail
  • integrated bypass relay
  • parameterization by means of three potentiometers
  • no additional control voltage required
  • no mains neutral conductor (N) required
  • economically priced substitute for star-delta starters
  • plug-in power terminals
Functions:
  • soft acceleration and deceleration
  • potential-free control input for soft acceleration and deceleration
  • 3 separately adjustable parameters accel. time, start voltage, decel. time
  • boost-start selectable
  • potential-free relay output for operating state unit bypassed and failure

Typical Applications:
door and gate drives
pumps, ventilators, fans
conveying systems
packaging machines
transport systems, assembly lines
machine applications


Accessories:

  • special voltages 230V and 480V
  • wide voltage range 400-600V with external control supply voltage US 24VDC (B)
  • signaling contact (M) beginning of acceleration until end of deceleration

Models:

Technical Data (standard)

AC-VS II 400-17

AC-VS II 400-25

AC-VS II 400-32

AC-VS II 400-45

Mains / Motor voltage according to DIN EN 50160 (IEC 38)

400V ± 10% 50/60Hz

Rated device current

17A

25A

32A

45A

Motor rating at 400V mains voltage

7,5kW

11kW

15kW

22kW

max. Power dissipation

- in operation

- in standby

29.5W

7.5W

29.5W

7.5W

28.5W

7.5W

27W

7.5W

min. motor current

20% of the device rated current

Acceleration time

0.5 … 10s

Start voltage

40 … 80%

Deceleration time

0.5 … 10s

Restart time

200ms

max. switching frequency at 3x Ie, 10s tan

60/h

45/h

35/h

10/h

Cross-sectional area

Control terminals

Power terminals

1.5mm2

1.5mm2

6mm2

16mm2

I2t - Power semiconductor

4900A2s

4900A2s

6050A2s

6600A2s

Tightening torque

1.2-1.5 Nm

11-13 ibs in

1.5-1.7 Nm

13-13 ibs in

Input resistance Control inputs

10 kΩ

Switching rating of relay output RA1/RA2

3A/250VAC; 3A/30VDC

Overvoltage category / Pollution degree

III (TT/TN systems) / 2

Installation class

3

Surge strength

4kV

Ambient / Storage temperature

0ºC … 45ºC up to an altitude of 1000m / -25ºC … 70ºC

Weight / kg

1

Special voltages (optional)

230V / 480V / wide voltage range 400-600V with external control supply voltage Us 24VDC±10%/150mA

Order number

25700.40017

25700.40025

25700.40032

25700.40045
Please observe supplementary sheet with dimensioning rules

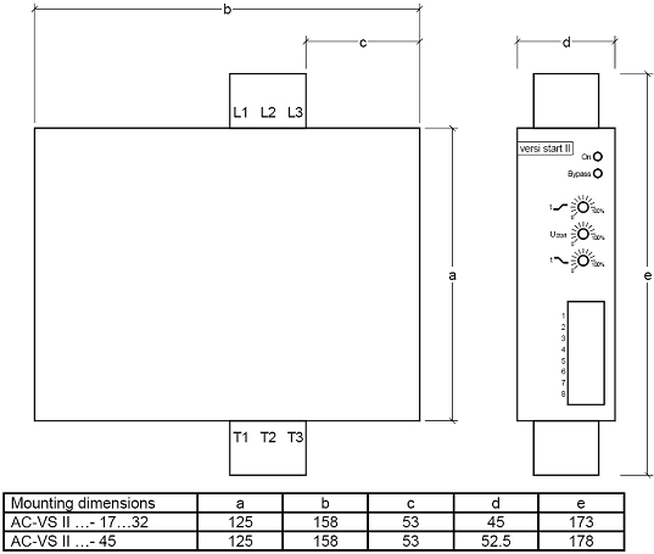

Dimensions:

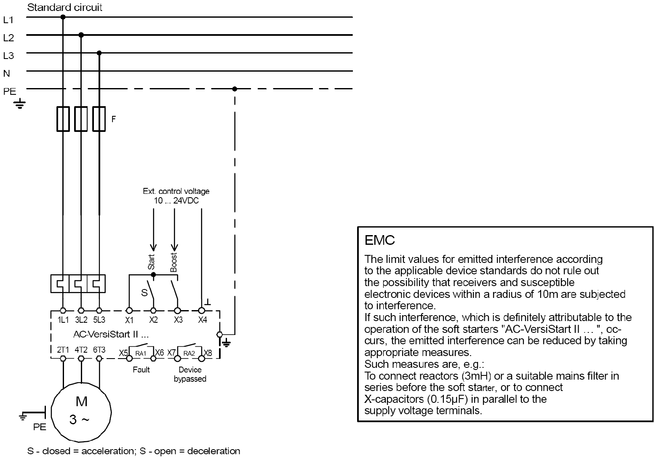

Connection Diagram:
