VersiStart II LDS Series (6,5~32А)

Features:
  • two-phase controlled soft starter
  • controlled by microcontroller
  • easy mounting, also for retrofitting into existing plants
  • integrated bypass relay
  • no additional control voltage required
  • no mains neutral conductor (N) required
  • parameterization by means of three potentiometers
  • economically priced substitute for star-delta starters
  • current reduction during acceleration
  • circuit-board version for mounting onto DIN rail
  • plug-in control terminals
  • degree of protection IP00
Function:
  • soft acceleration and deceleration
  • potential-free control input for soft acceleration and deceleration
  • 3 separately adjustable parameters: starting torque, accel. time, decel. time
  • two wire or three wire control via contact or voltage 10-42VDC
  • boost-start selectable

Typical Applications:
door and gate drives
pumps, ventilators
conveying systems
packaging machines


Options (upon request):

  • Special voltages 230V and 480V

Models:

Technical Data

VS II 3 LDS

VS II 5,5 LDS

VS II 7,5 LDS

VS II 11 LDS

VS II 15 LDS

Mains / Motor voltage according to DIN EN 50160 (IEC 38)

400V ± 10% 50/60Hz

Device nominal current

6,5A

12A

15A

25A

32A

Motor rating at 400V mains voltage

3kW

5,5kW

7,5kW

11kW

15kW

min. motor current

20% of the device rated current

Starting torque

0.5 … 10s

Acceleration time

0 … 80%

Deceleration time

0.5 … 10s

Reset time

200ms

max. Switching cycle at 3x Ie and 5s tan

120/h

65/h

100/h

65/h

35/h

Cross-sectional area FASTON 6.3:
1.5mm2 2.5mm2 litz 2.5mm2

I2t-Value Power semiconductor

265A2s

610A2s

4900A2s

4900A2s

6600A2s

Techn. parameter of relay output RA1

3A/250VAC; 3A/30VDC

Techn. parameter of open-collector LO1

24VDC/200mA

Ambient / Storage temperature

0ºC … 40ºC / -25ºC … 75ºC

Weight / kg

0.270.4

Order number

25723.40003

25723.40005

25723.40007

25723.40011

25723.40015

Please observe supplementary sheet with dimensioning rules

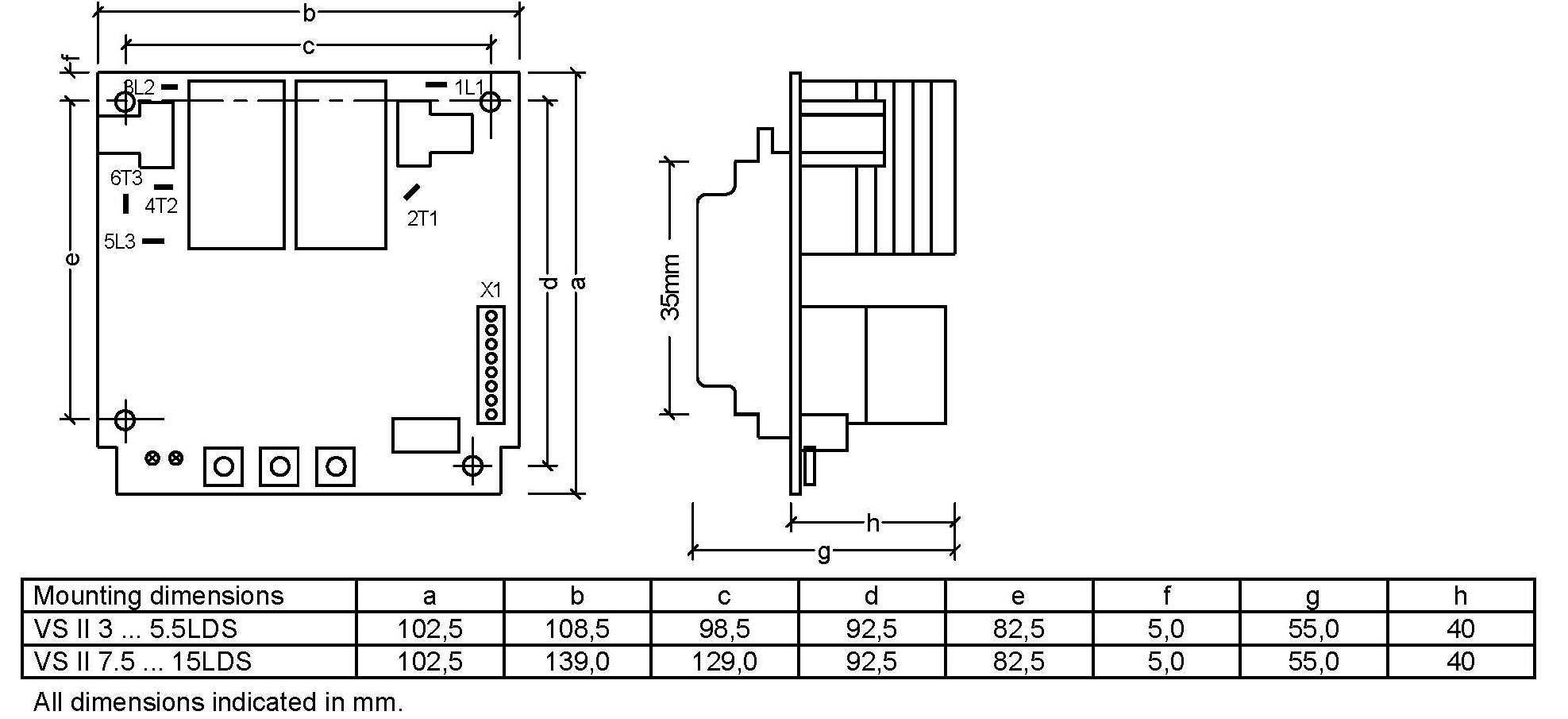

Dimensions:

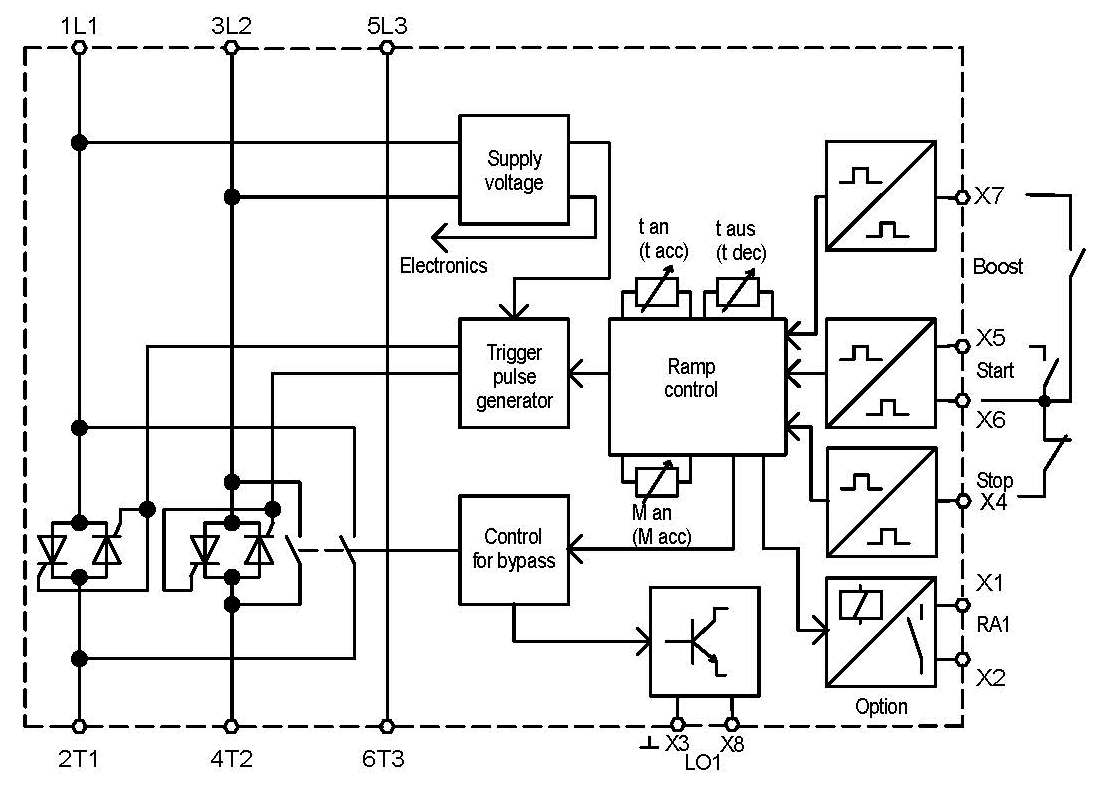

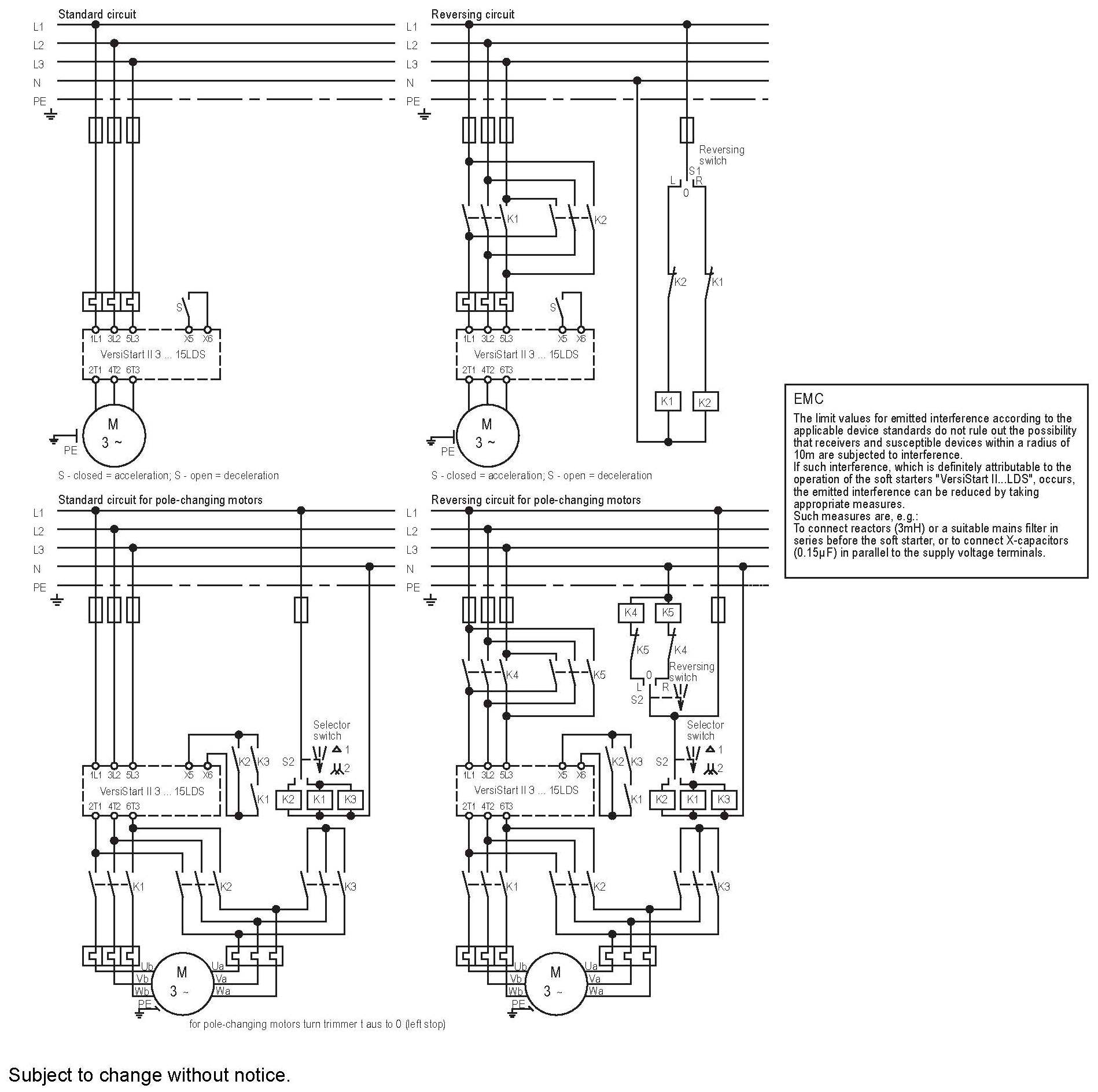

Connection Diagram:
