VersiStart i III Series (255A~1600A)

Features:
  • three-phase controlled digital-soft starter (7,5-800kW)
  • integrated Bypass up to 550kW
  • current and torque reduction during acceleration
  • Comprehensive and customizable motor protection
  • DC Braking - Contactorless
  • Display graphical LCD - Real time graphs of motor operating performance
  • Inside Delta (6-wire) connection
  • degree of protection: IP 20(up to 100 A),IP00(from 140 A up)
  • motor PTC connection
Functions:
  • Emergency run
  • Forward or reverse jog direction.
  • Remote control inputs (3x fixed, 1x programmable)
  • Relay outputs (3x programmable)
  • 24VDC output
  • Analog output
  • divers Soft Start/Stop control types
  • units with 690V upon request

Typical Applications:
pumps, ventilators
compressors
mills, crushers, presses,
conveying systems
drives with high-inertia starting
machines with gear units, belt or chain
drives


Accessories:

  • Control Software
  • DeviceNet module (29000.25903)
  • Modbus module (29000.25904)
  • Profibus module (29000.25905)
  • USB module (available from end of year 2010)
  • Finger protection (29000.25909)

Upon request up to 500kW
N = without bypass (Integrated Bypass by mid year ´10)

Models without integrated Bypass:

Technical Data

AC-VS i III 525-




255N C1

380N C1

430N C1

650N C1

790N C1

930N C1




255N C2

380N C2

430N C2

650N C2

790N C2

930N C2

Mains voltage according to DIN EN 50160 (IEC 38)

200-525V 45-66Hz




AC-VS i III 690-




255N C1

380N C1

430N C1

650N C1

790N C1

930N C1




255N C2

380N C2

430N C2

650N C2

790N C2

930N C2

Mains voltage according to DIN EN 50160 (IEC 38)

380-690V 45-66Hz

Rated device current in A

255A

380A

430A

650A

790A

930A

Motor rating at 400V in kW

-132

-185

-220

-315

-400

-500

I2t – Value Power semiconductor in kA2s

320

320

320

1200

2530

4500

Acceleration

Constant current, Current ramp, “Adaptive Acceleration Control”, Torque Control

Deceleration

Timed voltage ramp soft Stopp, Brake

Switching frequency 3x Ie and 10s

AC53b 3.0 – 10:590 10/h

Techn. parameter of relay outputs

10A/250VAC resistive; 5A/250VAC AC15

Ambient temperature

-10ºC … +40ºC (+60ºC Derating)

Control voltage

C1: 110VAC; 220VAC -15%/+10% C2: 24VDC/24 VAC ±20%

Weight / kg

25

50.5

53.5

Order number:

525V/C1 2S010.50...*

255

380

430

650

790

930

525V/C2 2S011.50...*

255

380

430

650

790

930


Models with integrated Bypass:

Technical Data

AC-VS i III 525-




255 C1

350 C1

425 C1

500 C1

580 C1

700 C1

820 C1

920 C1

1000 C1




255 C2

350 C2

425 C2

500 C2

580 C2

700 C2

820 C2

920 C2

1000 C2

Mains voltage according to DIN EN 50160 (IEC 38)

200-525V 45-66Hz

Rated device current in A

255

350

425

500

580

700

820

920

1000

Motor rating at 400V in kW

132

185

220

250

315

400

450

500

550

Control voltage

C1: 110VAC; 220VAC -15%/+10% C2: 24VDC/24 VAC ±20%

Ambient temperature

-25ºC … +60ºC (Derating)

Weight / kg

26

30,2

30,2

49,5

49,5

60

60

60

60

Order number:

C1 2S000.50...

255

350

425

500

580

700

820

920

101

Order number:

C2 2S001.50...

255

350

425

500

580

700

820

920

101


Dimensions:


Model

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

VS i III...-255

424

376

440

392

296

VS i III...-350

424

376

440

392

296

VS i III...-425

424

376

440

392

296

VS i III...-500

433

320

640

600

295

VS i III...-580

433

320

640

600

295

VS i III...-700

433

320

640

600

295

VS i III...-820

433

320

640

600

295

VS i III...-920

433

320

640

600

295

VS i III...-1000

433

320

640

600

295

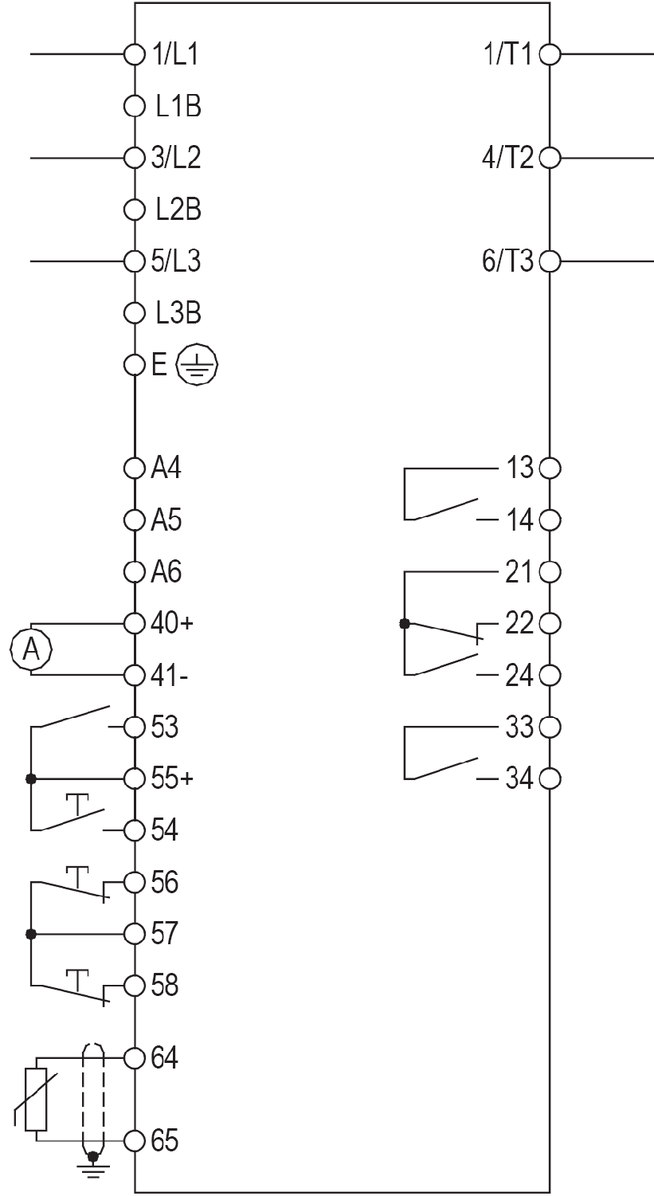

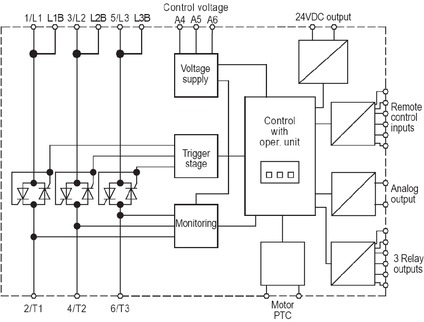

Connection Diagram:
