DUOSTART Series (3,5А~12А)

Features:
  • two-phase controlled soft starter
  • easy mounting, also for retrofitting into existing plants
  • integrated bypass relay
  • no mains neutral conductor (N) required
  • parameterization by means of three potentiometers
  • economically priced replacement for star/delta switches
  • for mounting on top hat rail
  • current reduction during acceleration
  • very compact design, overall width from 45mm on
  • degree of protection IP20
Functions:
  • soft start and soft stop
  • potential-free control input for soft start and soft stop
  • 3 separately adjustable parameters starting torque, acceleration time, deceleration time
  • control (start/stop) with contact or voltage 10-42VDC

Typical Applications:
door and gate drives
pumps, ventilators
conveyors
packaging machinery
transformer soft start


Options (upon request):

  • DUOSTART ... M (beginning of acceleration until end of deceleration)
  • DUOSTART ... S control (start/stop) with voltage 10-42VDC
  • external 24V supply voltage (wide voltage range capability)

Upon request up to 500kW
N = without bypass (Integrated Bypass by mid year ´10)

Models:

Technical Data

AC-DUOSTART

1.5

3

5.5

Mains / Motor voltage according to DIN EN 50160 (IEC 38)

400V ± 10% 50/60Hz

Device nominal current

3.5A

6.5A

12A

Motor rating at 400V mains voltage

1.5kW

3kW

5.5kW

min. motor current

40% of the device rated current

Starting torque

0 … 80%

Acceleration time

0.5 … 12s

Deceleration time

0.5 … 12s

Reset time

200ms

max. Switching cycle at 3x Ie and 5s tan

200/h

120/h

70/h

max. Cross-sectional area

solid

stranded

2x 2.5mm2

2x 1.5mm2

2x 2.5mm2

2x 1.5mm2

2x 2.5mm2

2x 1.5mm2

I2t-Value Power semiconductor

72A2s

265A2s

610A2s

Ambient / Storage temperature

0ºC … 45ºC / -25ºC … 75ºC

Weight / kg

0.4

0.4

0.4

Special voltages

230V

230V

480V

230V

480V

Order number

Option “M”

Option “S”

21500.4001

21501.4001

21502.4001

21500.4003

21501.4003

21502.4003

21500.4005

21501.4005

21502.4005

Please observe supplementary sheet with dimensioning rules

Dimensions:

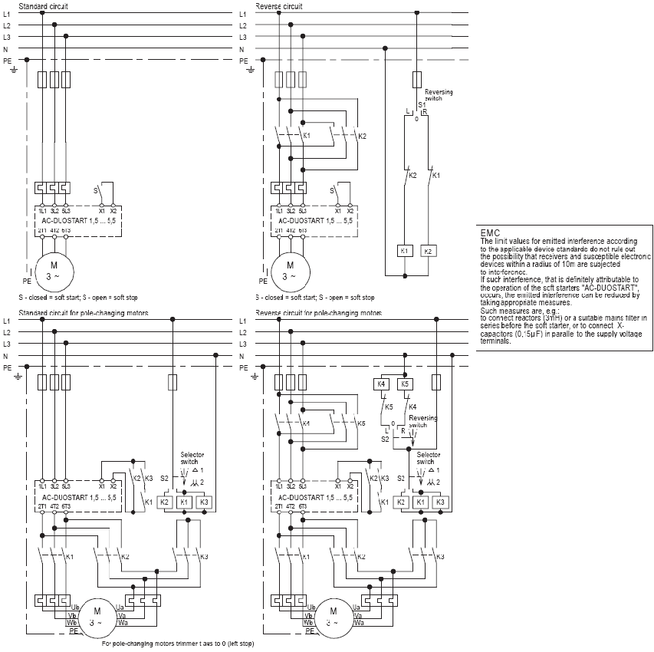

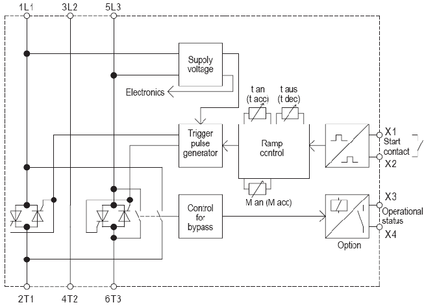

Connection Diagram:
