DAS-T Series (17А~105А)

Features:
  • three-phase controlled soft starter
  • easy mounting, also for retrofitting into existing systems
  • terminal arrangement suitable for switchgear connection
  • integrated bypass contactor
  • no mains neutral conductor (N) required
  • functional peak current reduction
  • monitoring of heat sink temperature
  • monitoring of motor temperature via motor thermistor
  • potential-free control inputs and outputs
  • special voltages up to 690V
  • robust metal enclosure
  • degree of protection IP 20
Functions:
  • soft acceleration and deceleration
  • acceleration/deceleration via control contact or control voltage 10 ... 42VDC (selectable)
  • 4 separately adjustable parameters starting torque, acceleration time, soft stop torque, deceleration time
  • potential-free output for operational status* 250VAC/8A
  • fault signalling contact (250VAC/8A)
  • input for motor thermistor
  • for special voltages higher than 500V an external electronic supply (230VAC) is necessary.

* closed when power semiconductors are bridged, or closed from start of acceleration to end of deceleration


Typical Applications:
pumps
ventilators
conveying machinery
dryers, washing machines
compressors
cranes, trolleys

Models:

Technical Data

AC-DAS-T

7.5

11

15

22

30

37

55

Mains / Motor voltage (Standard) according to DIN EN 50160 (IEC 38)

400V ± 15% 50/60Hz (up to 690V upon request)

Device rated current

17A

25A

32A

48A

63A

75A

105A

Motor rating

7,5kW

11kW

15kW

22kW

30kW

37kW

55kW

min. motor current

10% of the device rated current

Starting torque

0 … 80%

Acceleration time

0.5 … 25s

Soft stop torque

20 … 80%

Deceleration time

0 … 15s

Reset time

200ms

max. switching cycle at 3x Ie and 10s tan

120/h

100/h

80/h

60/h

40/h

40/h

20/h

Cross-sectional area

of connecting cable

Control terminals

Power termonals

1.5mm2

16mm2

35mm2

I2t-Value Power seniconductor in A2s

3600

3600

8000

10500

18000

51200

125000

Ambient / Storage temperature

0ºC … 45ºC / -25ºC … 75ºC

Weight / kg

3.8

3.8

4

4

7.8

8

8.2

Order number

20900.40007

20900.40011

20900.40015

20900.40022

20900.40030

20900.40037

20900.40055

Please observe supplementary sheet with dimensioning rules

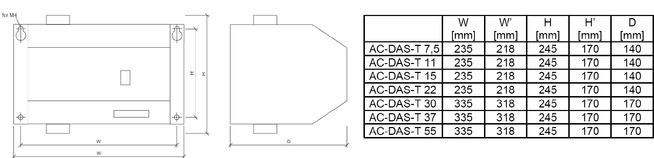

Dimensions:

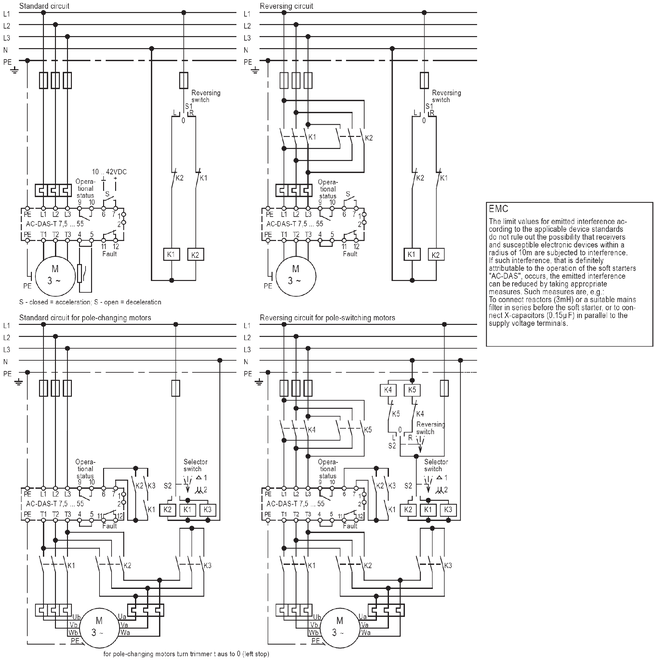

Connection Diagram:
