M430 series inverters for multi-purpose applications

Frequency inverters with sensorless vector control and various powerful functions. Designed for general purpose, pump/fan applications and HVAC systems.

Преобразователь частоты

M430 frequency inverters

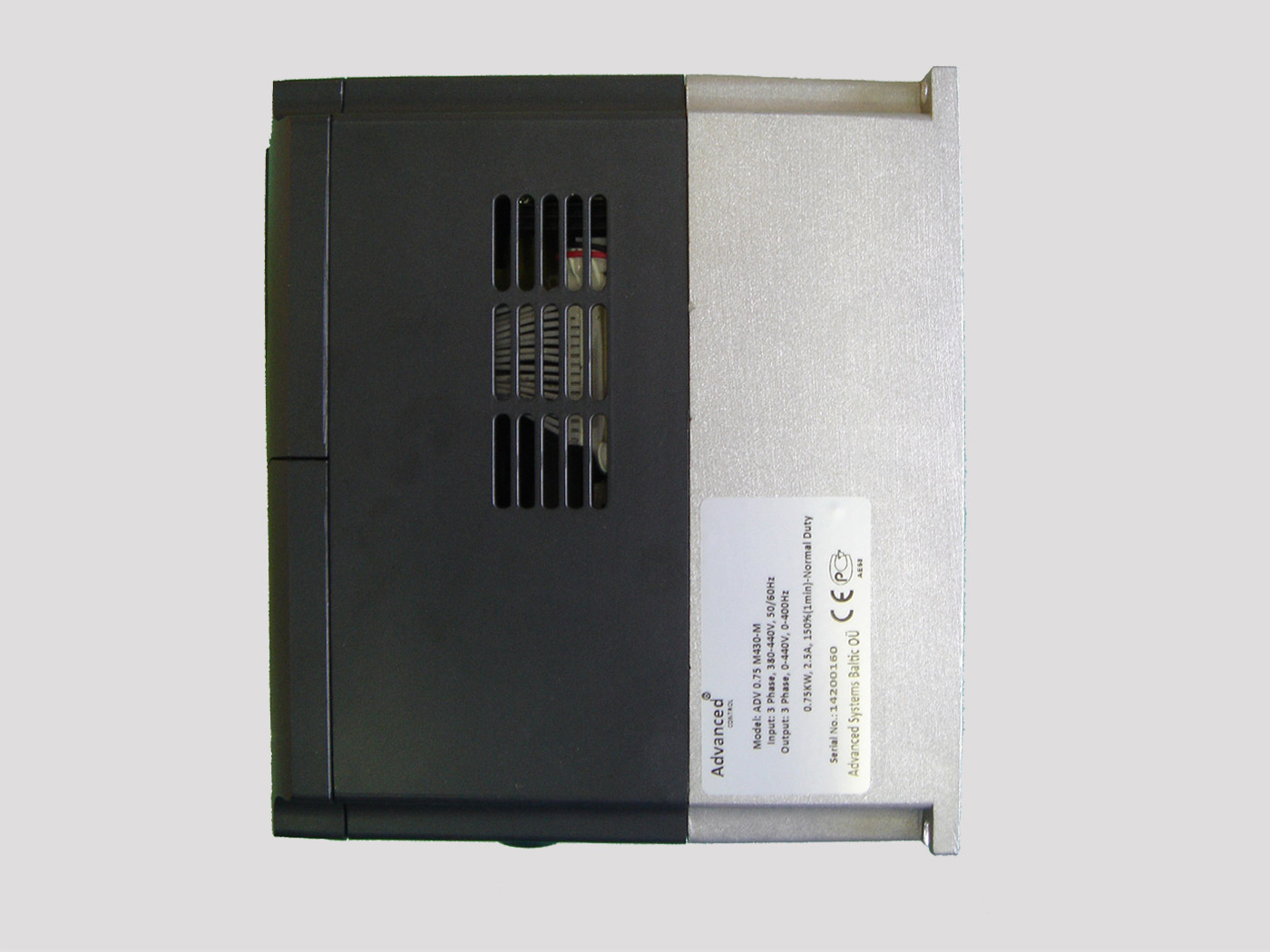

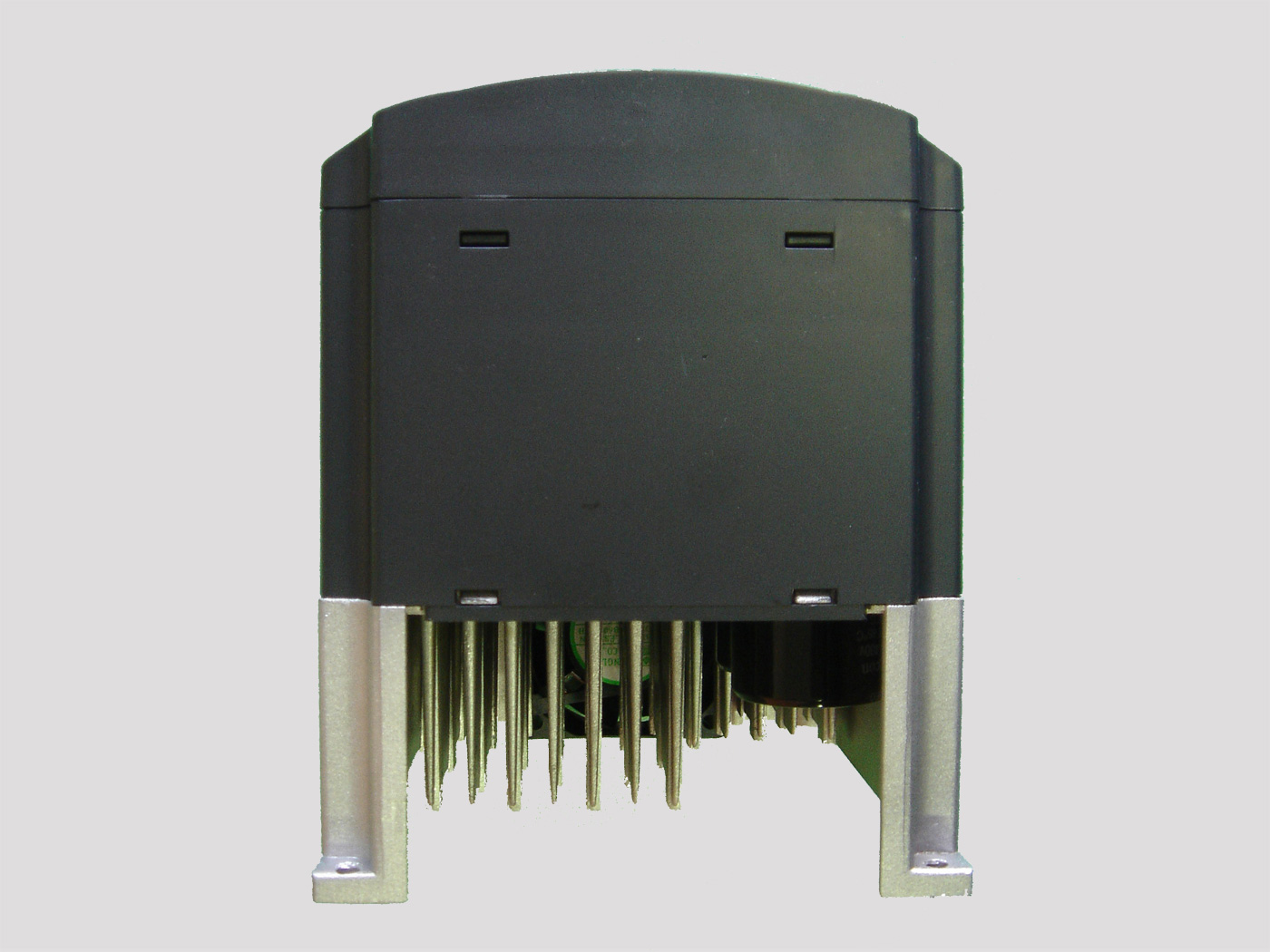

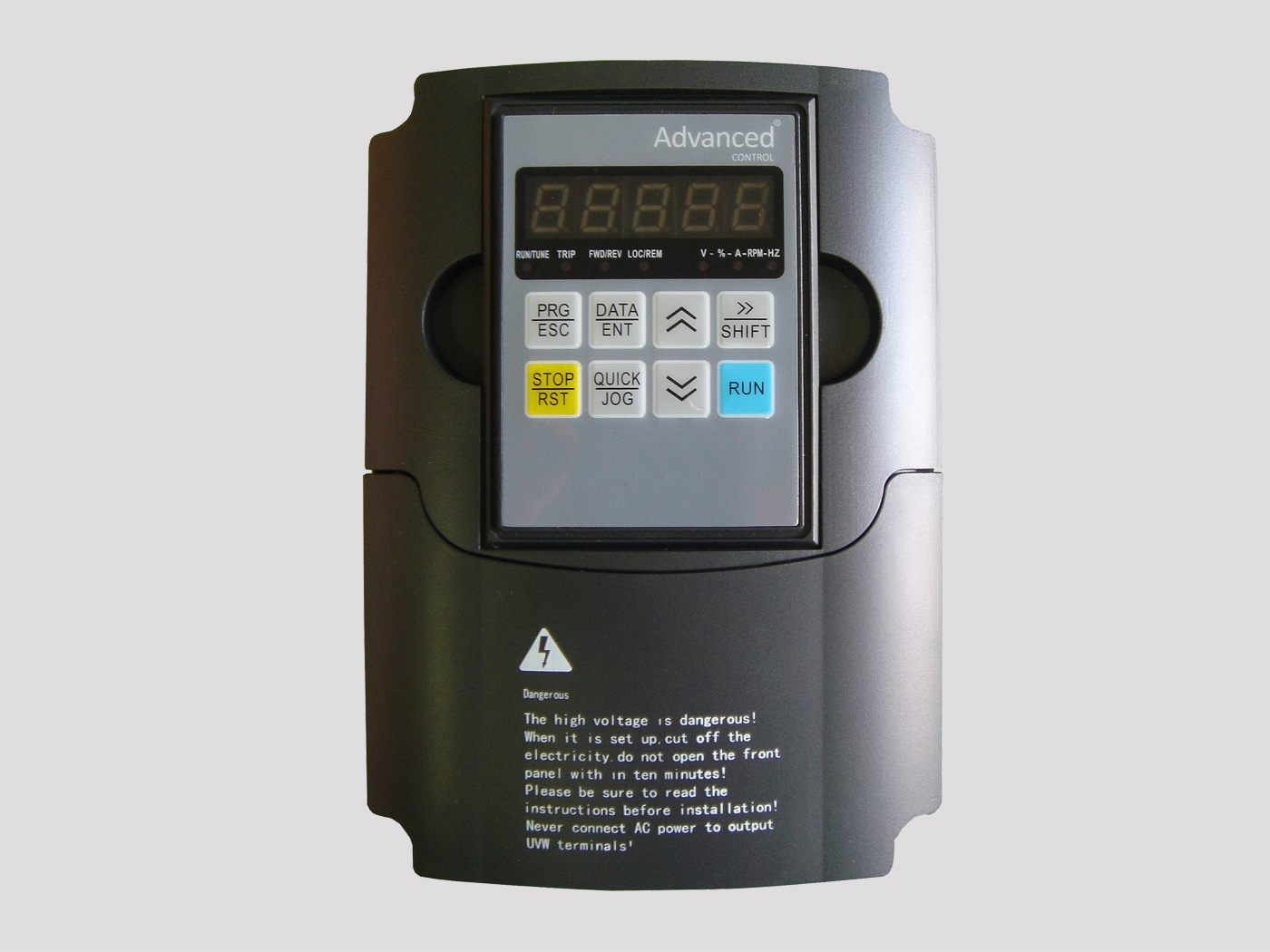

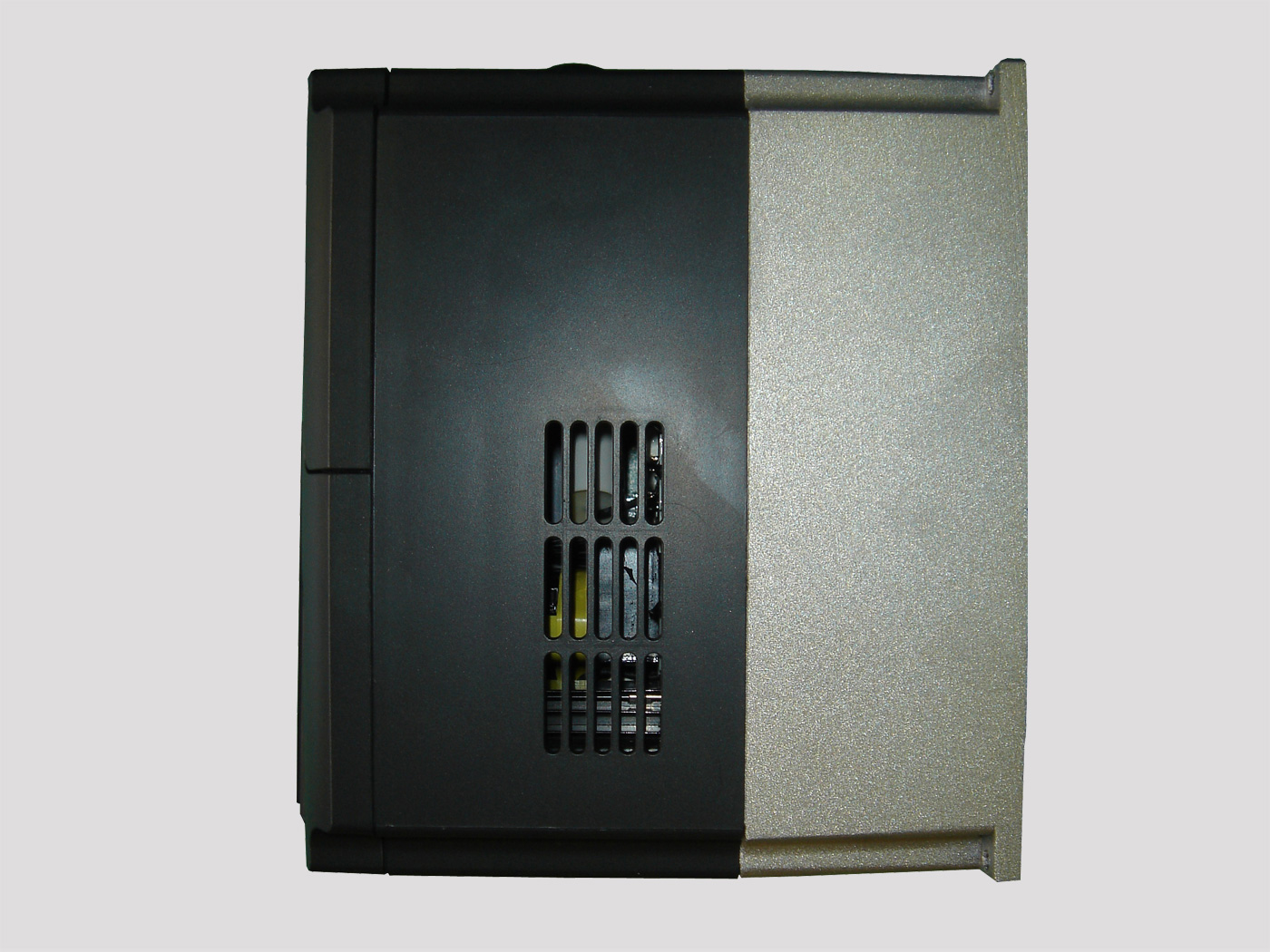

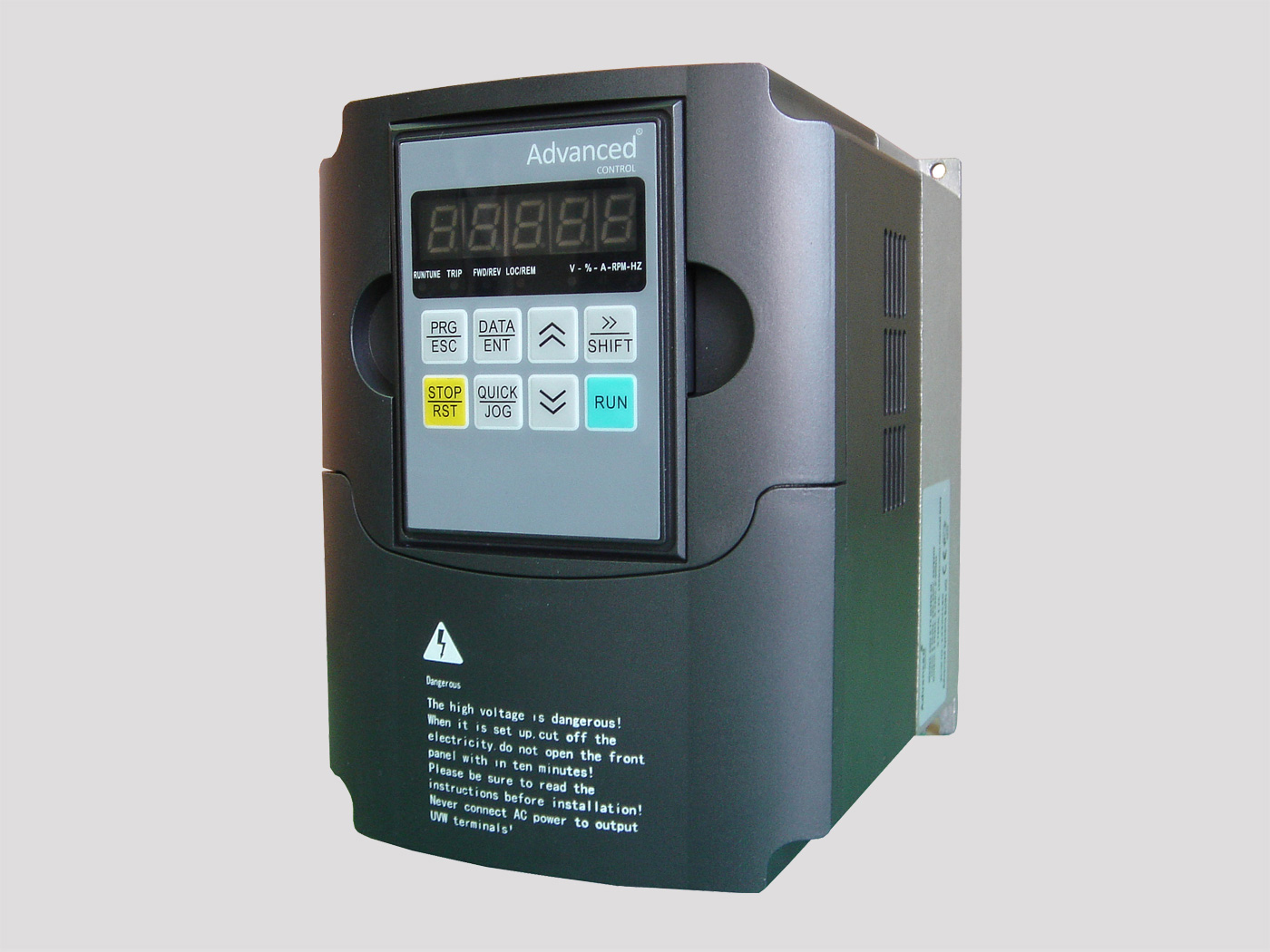

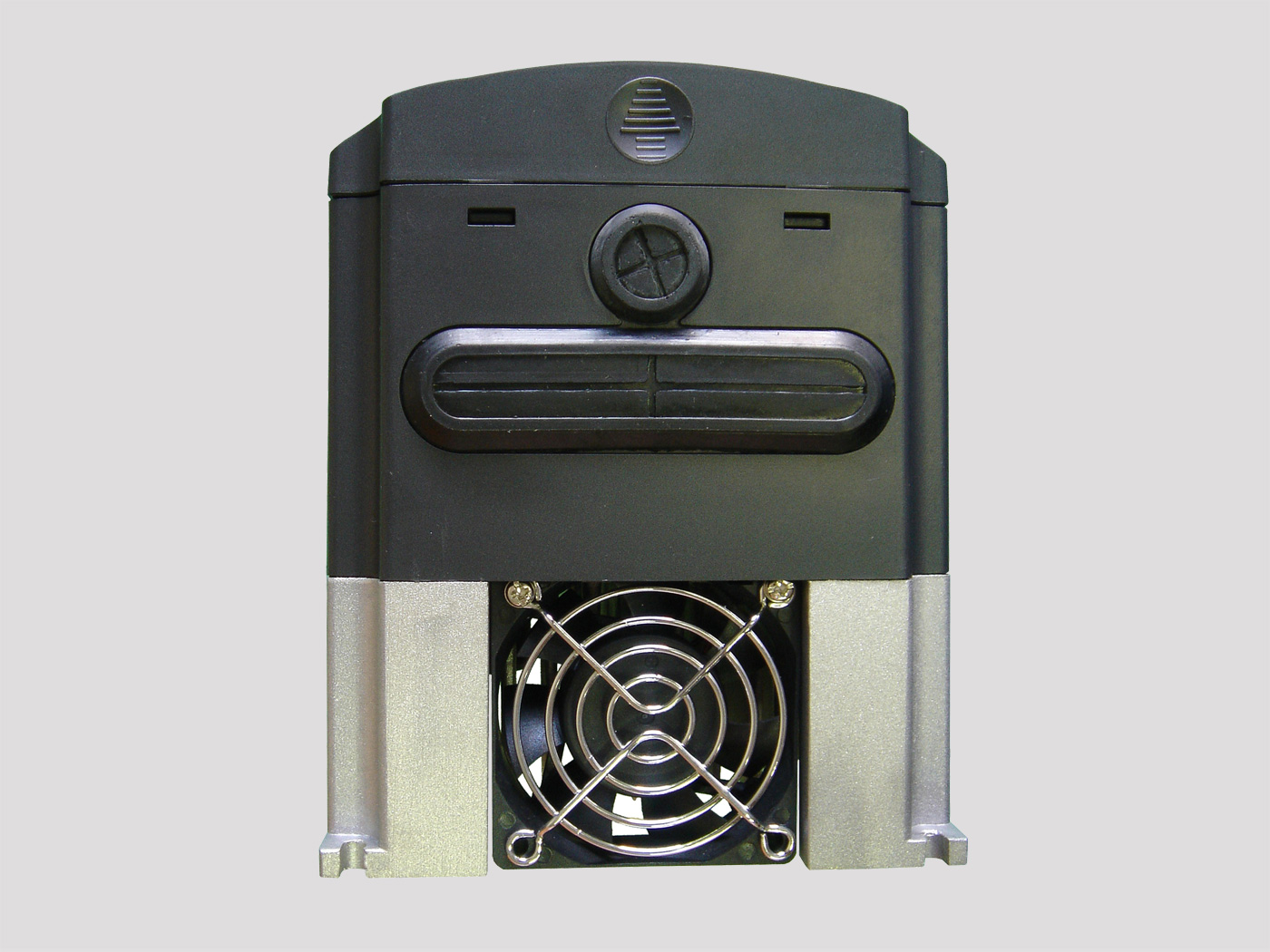

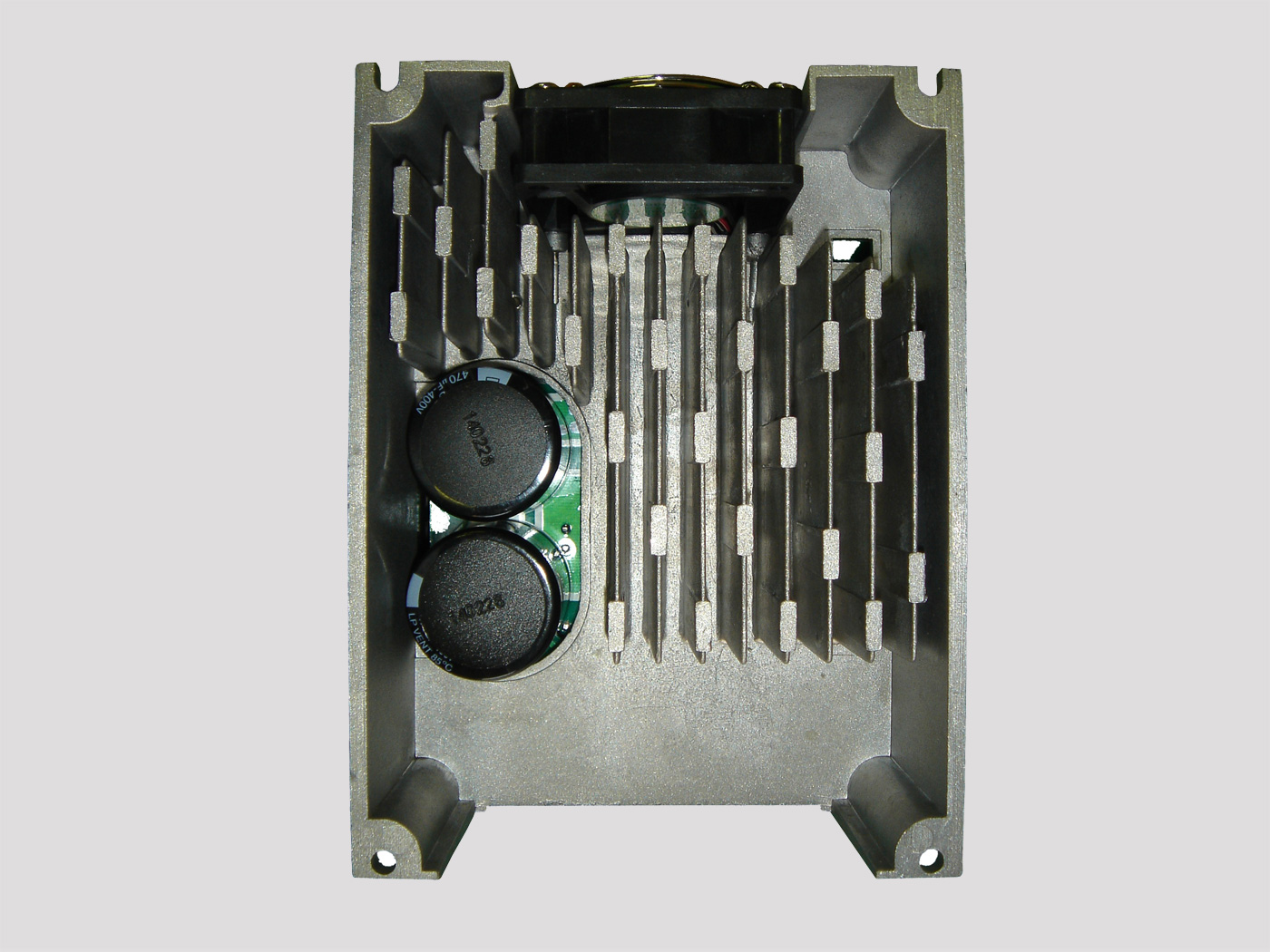

Image Gallery

  • Capacity range: 0,75~75 kW
  • Voltage range: 323~437 V
  • Built-in braking resistor up to 18,5 kW (included)
  • Build-in PID control
  • Standard RS485 communication function (ModBus)
  • Protective structure IP20
  • Eight digital input terminals
  • Protective functions: overheat, over current, phase loss protection
  • Operation Place: indoor,hide sunshine,no dust, corrosive gas, combustible gas, oil mist, water vapor, salinity

M430 series

Model
Capacity range, kWRated current, АOverload, % 60 secDimensions
(W x H x D)
Deceleration time, seс
ADV 0.75 M430-M0,75
2,5 150%125x170x1490,1-3600
ADV 1.50 M430-M 1,5
3,7
150%125x170x1490,1-3600
ADV 2.20 M430-M 2,2
5
150%125x170x1490,1-3600
ADV 5.50 M430-M5,5/4
13/9 150%;
120% - pump/fan applications
163x253x1750,1-3600
ADV 7.50 M430-M 7,5/5,5
17/13
150%;
120% - pump/fan applications
163x253x1750,1-3600
ADV 11.0 M430-M11/7,5
25/17
150%;
120% - pump/fan applications
163x253x1750,1-3600
ADV 15.0 M430-M 15/11
32/25
150%;
120% - pump/fan applications
218x302x2160,1-3600
ADV 18.5 M430-M18,5/15
37/32
150%;
120% - pump/fan applications
218x302x2160,1-3600
ADV 22.0 M430-M 22/18,5
45/37
150%;
120% - pump/fan applications
290x506x2360,1-3600
ADV 30.0 M430-M 30/22
60/45
150%;
120% - pump/fan applications
290x506x2360,1-3600
ADV 37.0 M430-M 37/30
75/60
150%;
120% - pump/fan applications
290x506x2360,1-3600
ADV 45.0 M430-M45/37
90/75
150%;
120% - pump/fan applications
375x582x2550,1-3600
ADV 55.0 M430-M 55/45
110/90
150%;
120% - pump/fan applications
375x582x2550,1-3600
ADV 75.0 M430-M 75/55
150/110
150%;
120% - pump/fan applications
375x582x2550,1-3600
