M420 series inverters for multi-purpose applications

Frequency inverters with vector flux control. Designed for general purpose and pump/fan applications.

Преобразователь частоты

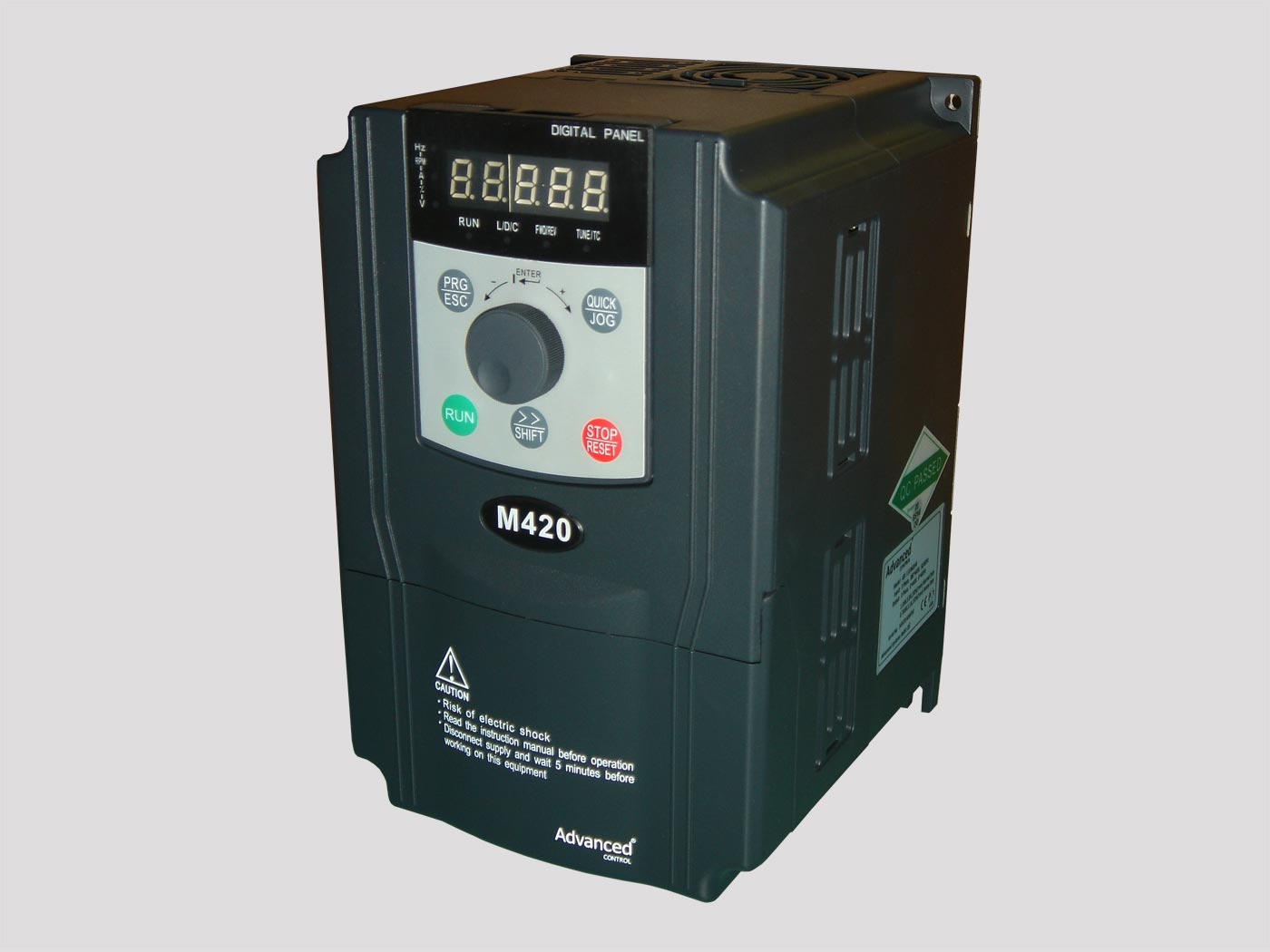

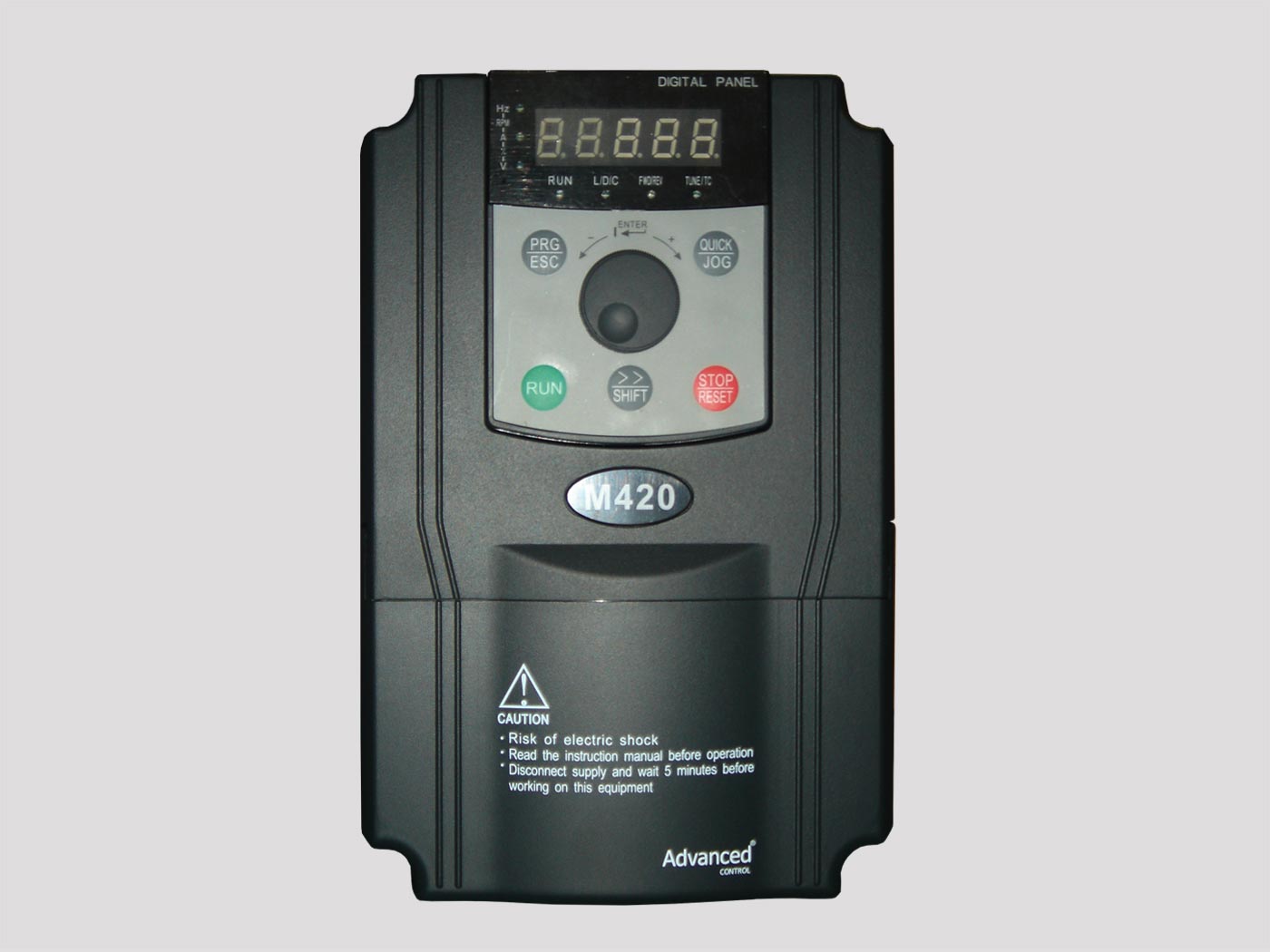

M420 frequency inverters

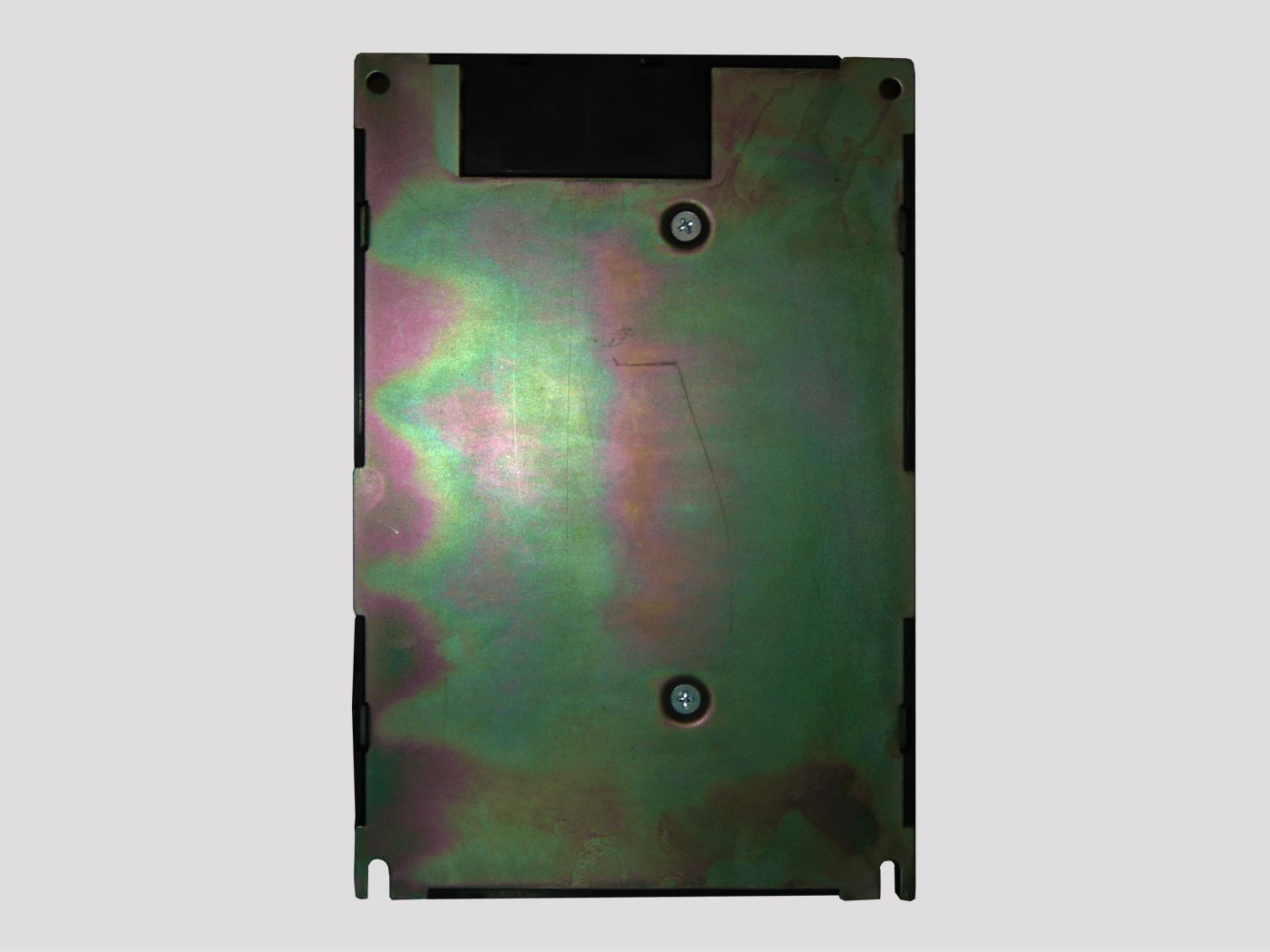

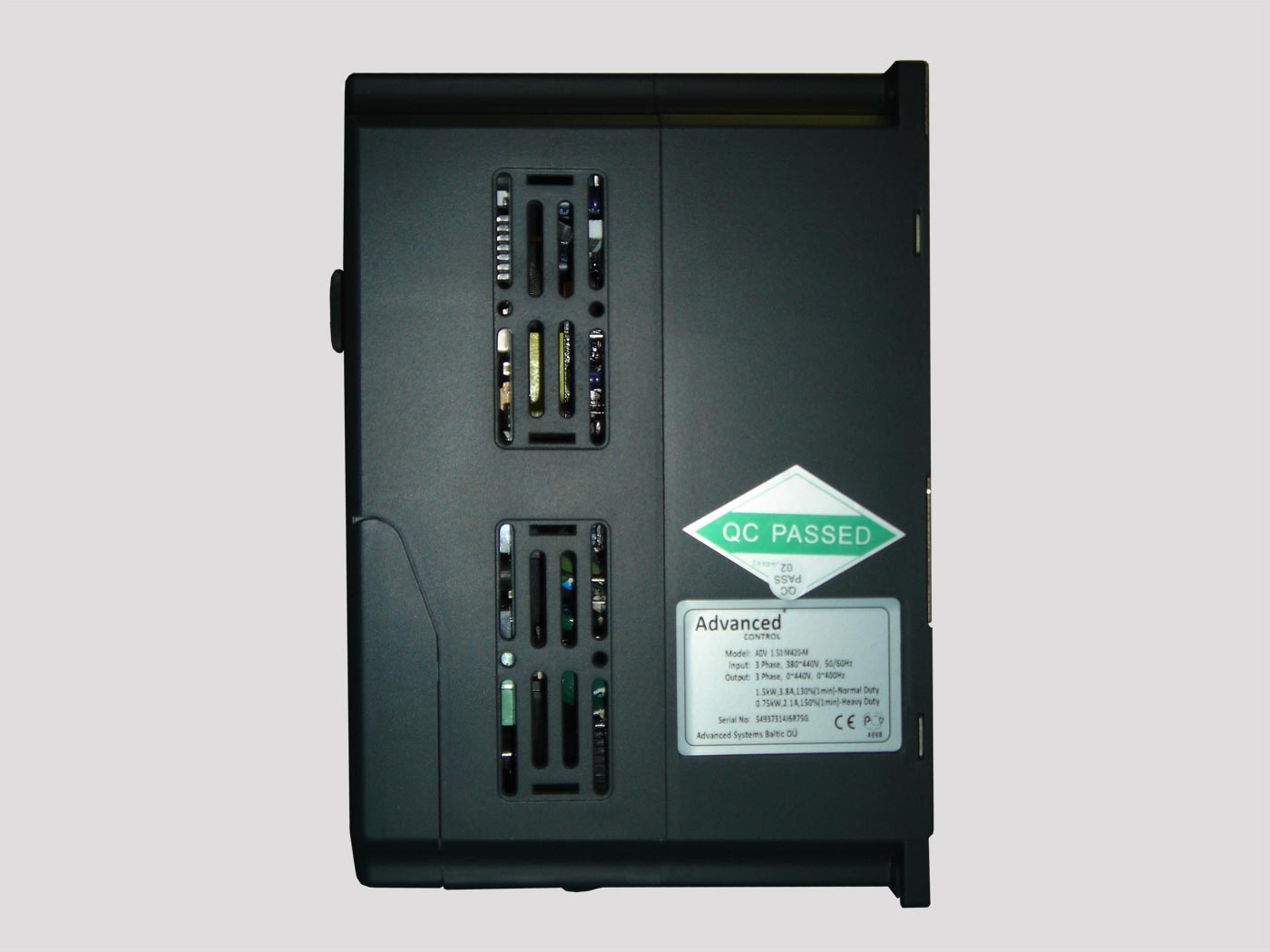

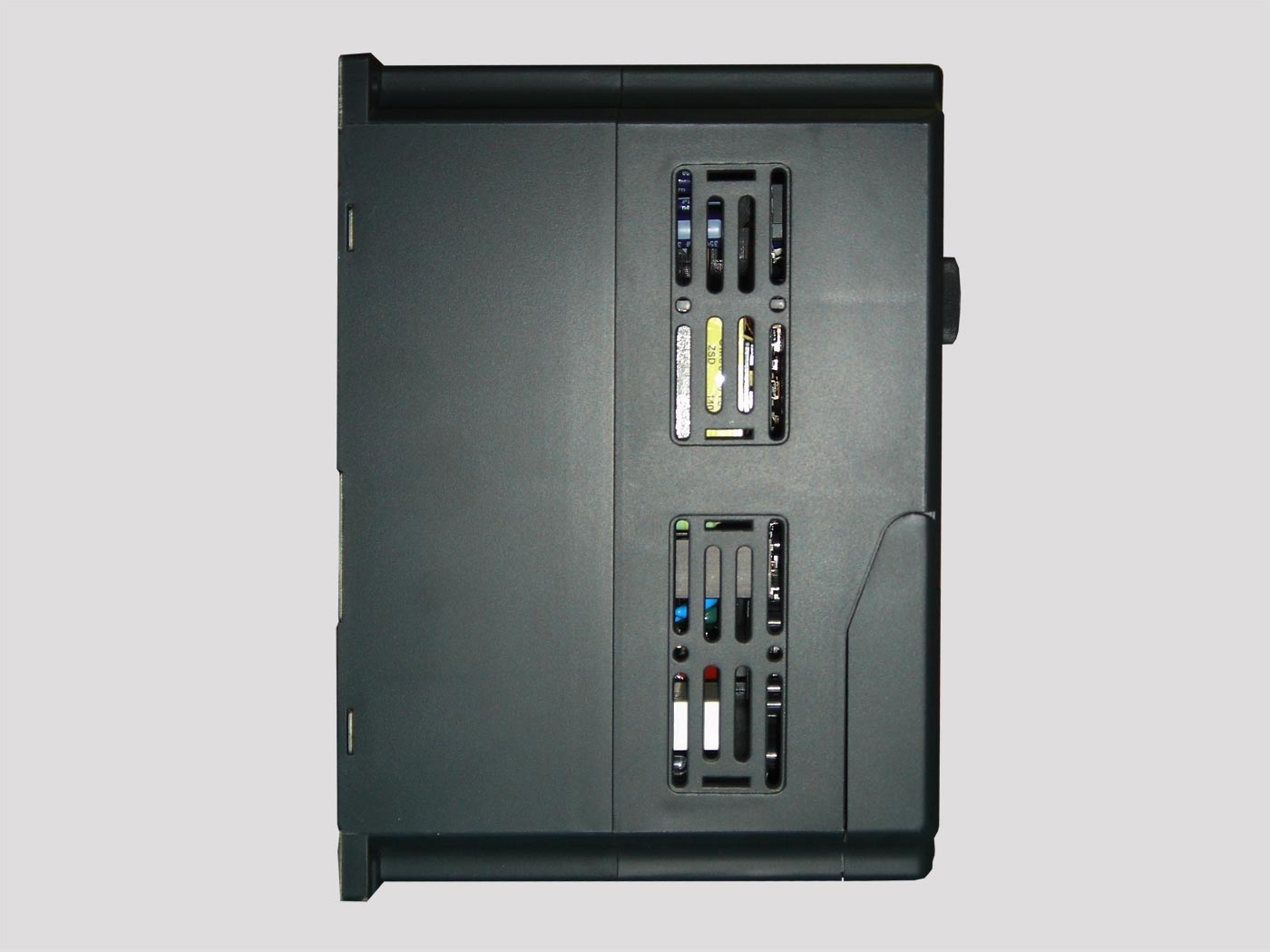

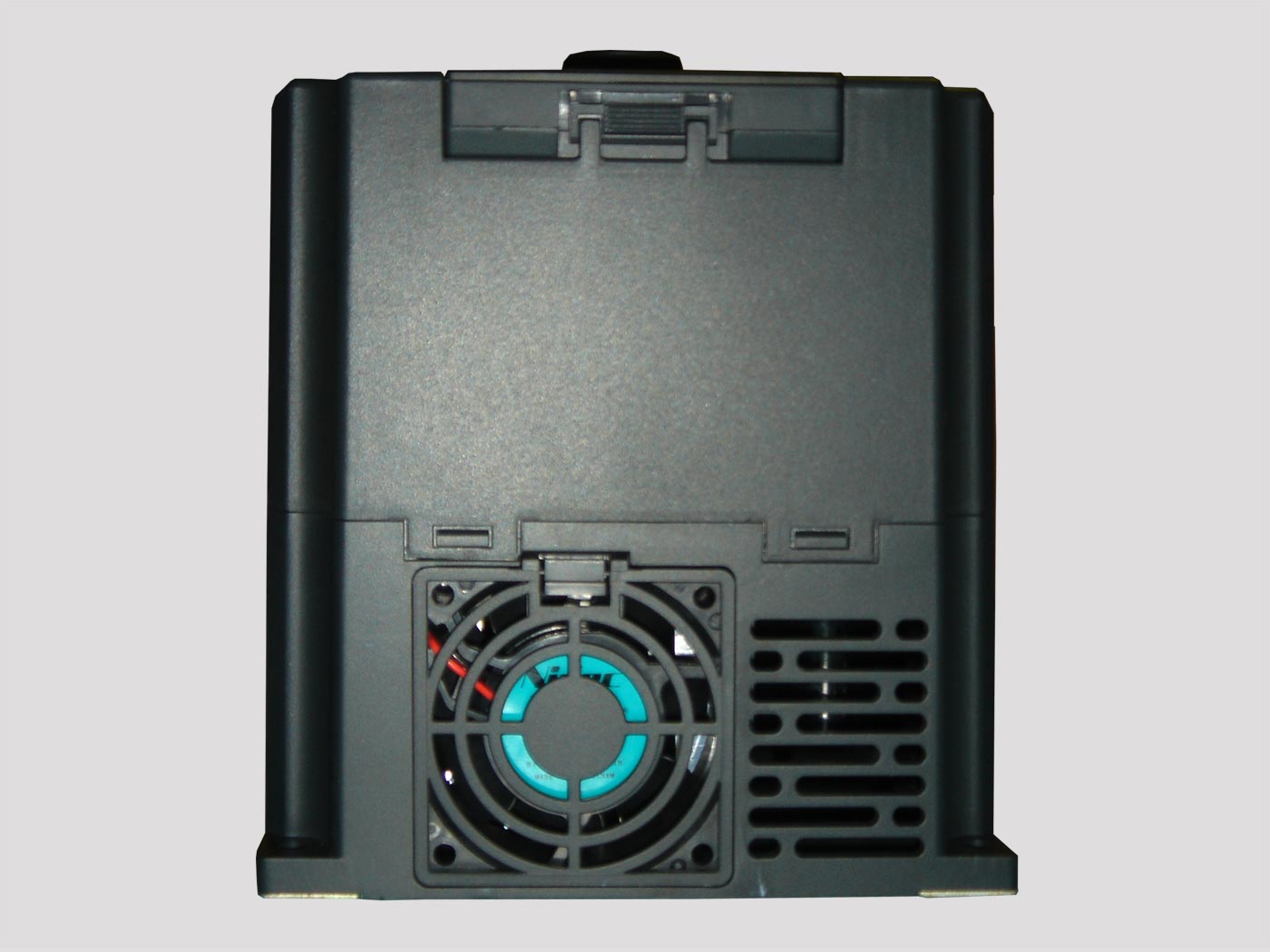

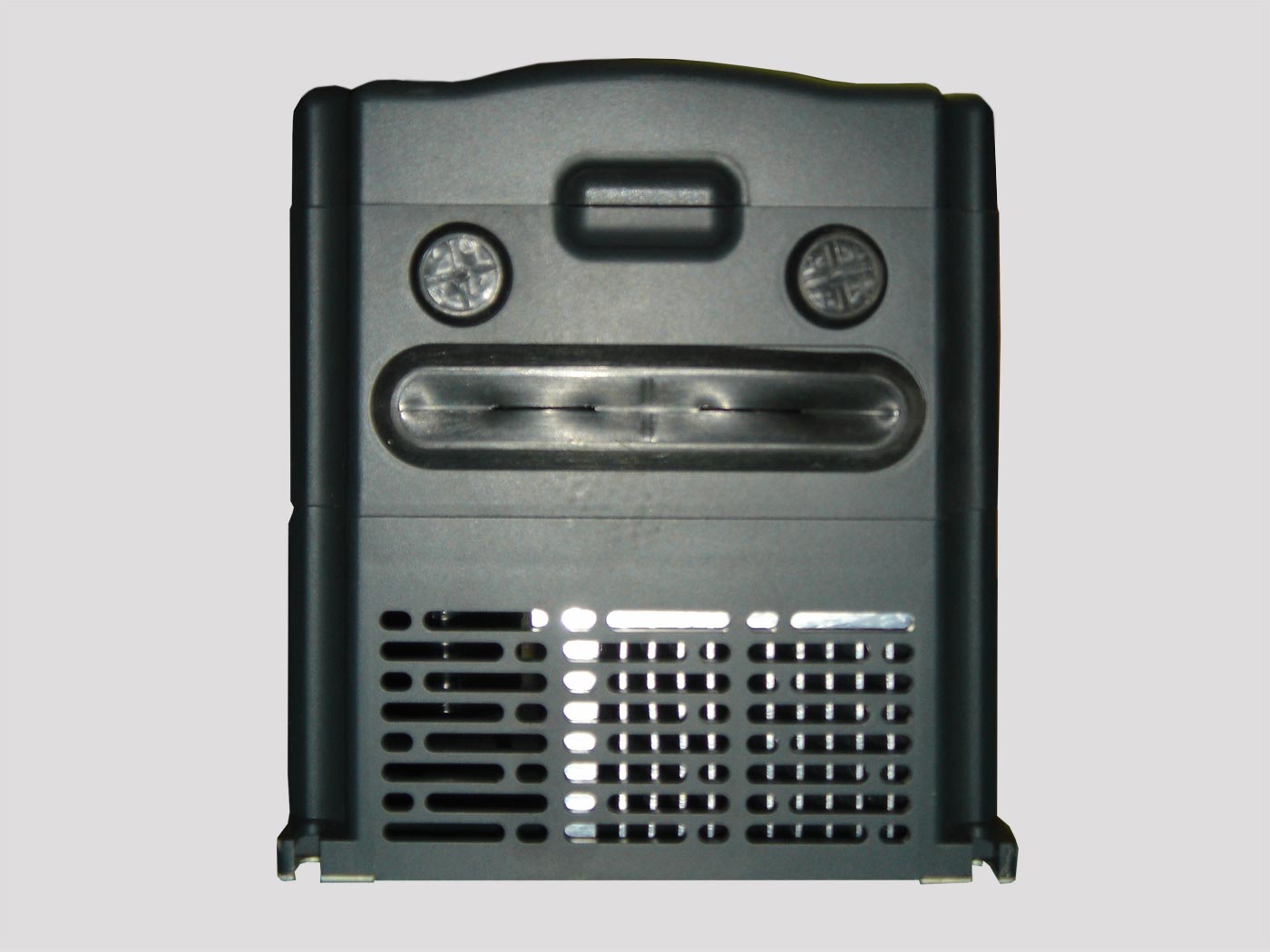

Image Gallery

  • Capacity range: 1,5 ~ 450kW
  • Voltage range: 323~456V
  • Build-in PID control
  • Standard RS485 communication function (ModBus)
  • Protective structure IP20
  • Auto voltage regulation (AVR)
  • Protective functions: overload, overvoltage, undervoltage, overheat, short circuit, over current, phase loss protection (input/output), etc.
  • Special function for winding

M420 series

Model Capacity range, kWRated current, АOverload, % 60 secDimensions
(W x H x D)
Deceleration time, seс
ADV 1.50 M420-M1,5/0,75
3,8/2,1 150%;
130% - pump/fan applications
162x232x1090-3000
ADV 2.20 M420-M 2,2/1,5
5,1/3,8
150%;
130% - pump/fan applications
162x232x1090-3000
ADV 4.00 M420-M 4/2,2
9/5,1
150%;
130% - pump/fan applications
162x232x1090-3000
ADV 5.50 M420-M5,5/4
13/9 150%;
130% - pump/fan applications
148x223x1590-3000
ADV 7.50 M420-M 7,5/5,5
17/13
150%;
130% - pump/fan applications
148x223x1590-3000
ADV 11.0 M420-M11/7,5
25/20
150%;
130% - pump/fan applications
162x238x1650-3000
ADV 15.0 M420-M 15/11
32/25
150%;
130% - pump/fan applications
222x340x1940-3000
ADV 18.5 M420-M18,5/15
37/32
150%;
130% - pump/fan applications
222x340x1940-3000
ADV 22.0 M420-M 22/18,5
45/37
150%;
130% - pump/fan applications
260x485x2300-3000
ADV 30.0 M420-M 30/22
60/45
150%;
130% - pump/fan applications
260x485x2300-3000
ADV 37.0 M420-M 37/30
75/60
150%;
130% - pump/fan applications
260x485x2300-3000
ADV 45.0 M420-M45/37
90/75
150%;
130% - pump/fan applications
330x565x2520-3000
ADV 55.0 M420-M 55/45
110/90
150%;
130% - pump/fan applications
330x565x2520-3000
ADV 75.0 M420-M 75/55
152/110
150%;
130% - pump/fan applications
380x588x2660-3000
ADV 90.0 M420-M 90/75
176/152
150%;
130% - pump/fan applications
460x660x2900-3000
ADV 110 M420-M 110/90
210/176
150%;
130% - pump/fan applications
460x660x2900-3000
ADV 132 M420-M132/110
253/210 150%;
130% - pump/fan applications
475x875x3050-3000
ADV 160 M420-M 160/132
304/253
150%;
130% - pump/fan applications
475x875x3050-3000
ADV 185 M420-M185/160
340/304
150%;
130% - pump/fan applications
520x1100x3550-3000
ADV 200 M420-M 200/185
380/340
150%;
130% - pump/fan applications
520x1100x3550-3000
ADV 220 M420-M220/200
426/380
150%;
130% - pump/fan applications
700x1360x3800-3000
ADV 250 M420-M 250/220
465/426
150%;
130% - pump/fan applications
700x1360x3800-3000
ADV 280 M420-M 280/250
520/465
150%;
130% - pump/fan applications
700x1360x3800-3000
ADV 315 M420-M 315/280
585/520
150%;
130% - pump/fan applications
700x1360x3800-3000
ADV 355 M420-M355/315
650/585
150%;
130% - pump/fan applications
900x1350x4550-3000
ADV 400 M420-M 400/355
725/650
150%;
130% - pump/fan applications
900x1350x4550-3000
ADV 450 M420-M 450/400
820/725
150%;
130% - pump/fan applications
900x1350x4550-3000
ADV 500 M420-M 500/450
900/820
150%;
130% - pump/fan applications
1060x1800x5000-3000
ADV 550 M420-M 550/500
1000/900
150%;
130% - pump/fan applications
1060x1800x5000-3000
ADV 630 M420-M 630/550
1100/1000
150%;
130% - pump/fan applications
1060x1800x5000-3000
