DC Brake VersiBrake L (LP) Series(6-30A)

Features:
  • DC braking with one-way rectification
  • suitable for all asynchronous motors and for mono phase motors
  • controlled by microcontroller
  • easy mounting, also for retrofitting into existing plants
  • wear-resistant and maintenance-free
  • integrated braking contactor
  • printed circuit-board version with fault signalling contact
  • for snap-on mounting onto 35mm DIN rail
  • degree of protection: case version IP 20, printed circuit-board version (LP) IP 00
  • meets trade assoc. requirements for category 2 acc. to EN 954-1 acc. to the test principles of woodworking machines GS-HO-01
Functions:
  • start braking via detection of motor voltage and via motor contactor (double safety)
  • overload protection
  • braking current cutoff after motor standstill
  • braking current control
  • automatic remanence time optimization
  • braking current infinitely adjustable 10-100%
  • potential-free output for motor contactor interlocking during braking; also usable to energize the star contactor during braking
  • standstill threshold adjustable; individual adaptable to different motor types

Typical Applications:
sawing machines
centrifuges
wood working machines
textile machines
conveying systems

Models:

Type designation

AC-VB 230-6L

AC-VB 230-25L

AC-VB 230-30L

AC-VB 400-6L

AC-VB 400-25L

AC-VB 400-30L

Mains voltage according to DIN EN 50160 (IEC 38)

220/240V ± 10% 50/60Hz

380/415V ± 10% 50/60Hz

Power draw of the electronics

3VA

Recommended for rated motor currents up to

0.3 … 3A

2 … 12.5A

2 … 15A

0.3 … 3A

2 … 12.5A

2 … 15A

Rated device current

6A

25A

30A

6A

25A

30A

max. Braking frequency at a braking time of 5s

1/8s

1/60s

1/90s

1/8s

1/60s

1/90s

I2t-Value Power semiconductor (A2s)

310

1250

1350

310

1250

1350

Braking voltage

0 … 110VDC

0 … 220VDC

max. Braking time

12s

Contact rating (control relay)

3A/250VAC; 3A/30VDC

Delay time for reduction of residual e.m.f.

Self-optimizing in the range between 0.2 … 2s

max. Cross-sectional area for connection

2x 2.5mm2 per terminal

Ambient / Storage temperature

0ºC … 45ºC / -25ºC … 75ºC

Weight / kg

0.6

Order number case version (L)

2B000.

23006

2B000.

23025

2B000.

23030

2B000.

40006

2B000.

40025

2B000.

40030

Order number printed circuit-board version (LP)

2B100.

23006

2B100.

23025

2B100.

23030

2B100.

40006

2B100.

40025

2B100.

40030

Please observe supplementary sheet with dimensioning rules

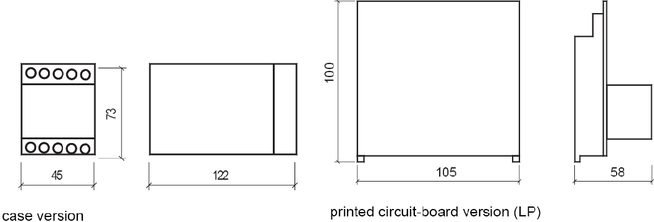

Dimensions:

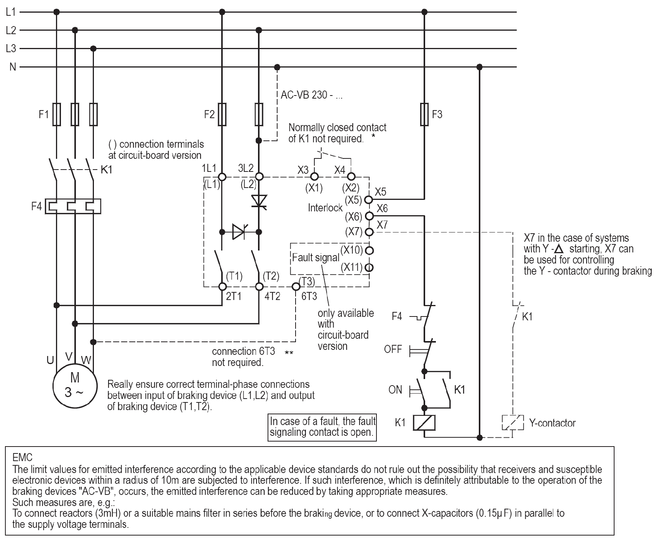

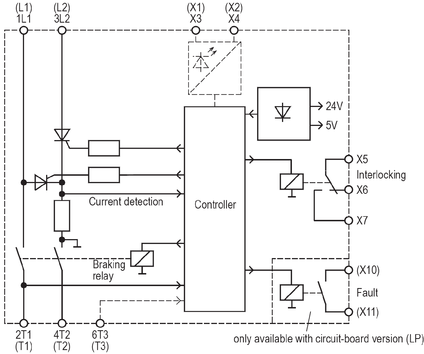

Connection Diagram:
